Lonten Technology

2.7inch E-Paper E-Ink Display Module for Raspberry Pi Pico 264x176, Black / White, 4 Grayscale SPI Custom PCB baby monitor pcba

2.7inch E-Paper E-Ink Display Module for Raspberry Pi Pico 264x176, Black / White, 4 Grayscale SPI Custom PCB baby monitor pcba

Regular price $26.00 USD
Regular price $66.00 USD Sale price $26.00 USD
Sale Sold out



Raspberry Pi Pico is NOT included.

DESCRIPTION

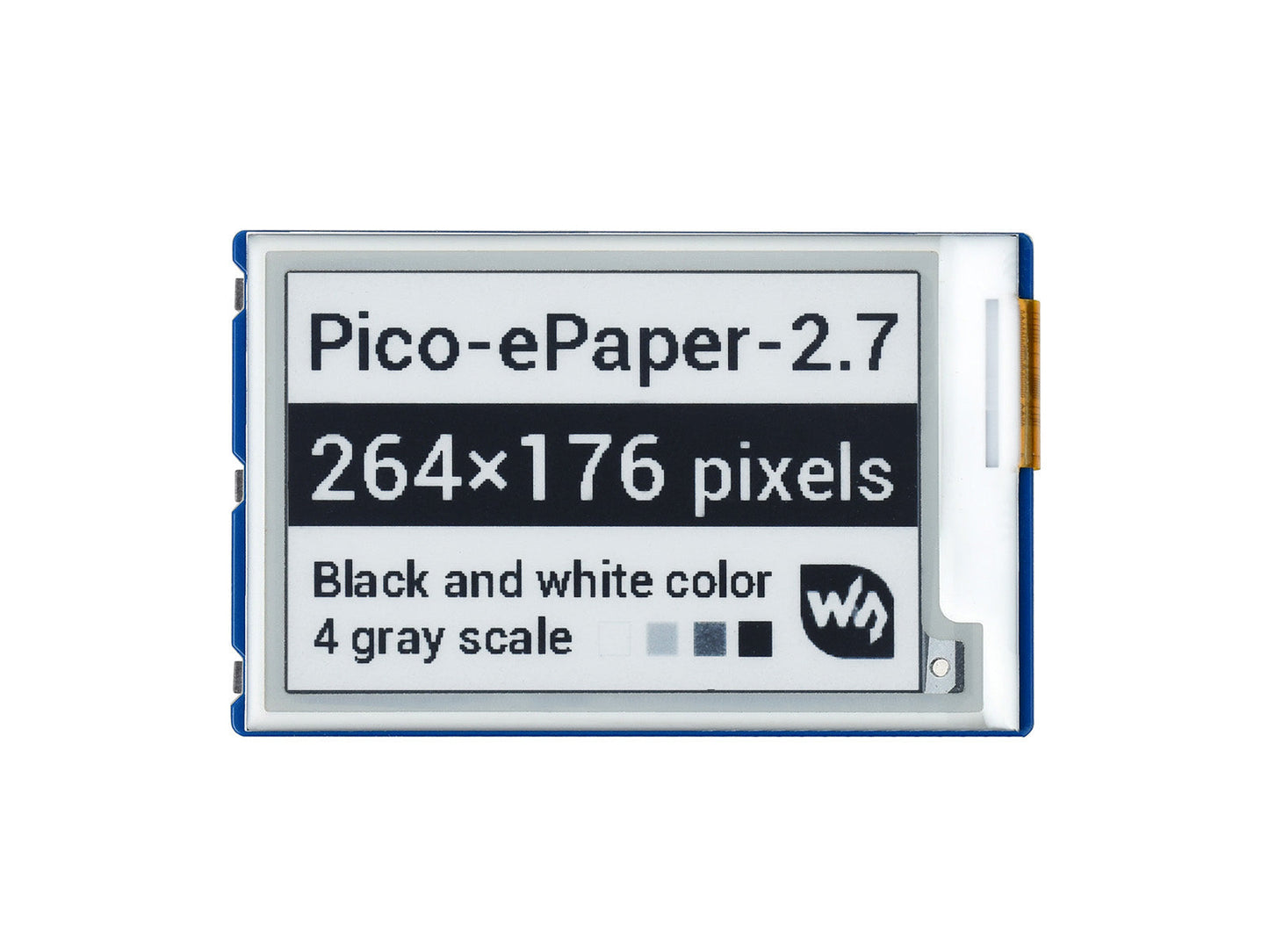

2.7inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 264×176 Pixels, Black / White, SPI Interface
2.7" E-Paper Module   For Pico

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...



  • Size2.7"
  • Resolution264×176
  • Viewing Angle>170°
  • Display ColorBlack / White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power

Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • 3x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE 3.3V DISPLAY COLOR black, white
RESOLUTION 264×176 pixels GREY SCALE 4
INTERFACE 3-wire SPI, 4-wire SPI VIEWING ANGLE >170°
PARTIAL REFRESH TIME N/A FULL REFRESH TIME 6s
OUTLINE DIMENSIONS 73.5 × 47.0mm DISPLAY SIZE 57.288 × 38.192mm
REFRESH POWER 26.4mW (typ.) STANDBY CURRENT <0.01uA (almost none)
DOT PITCH 0.217 × 0.217mm
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

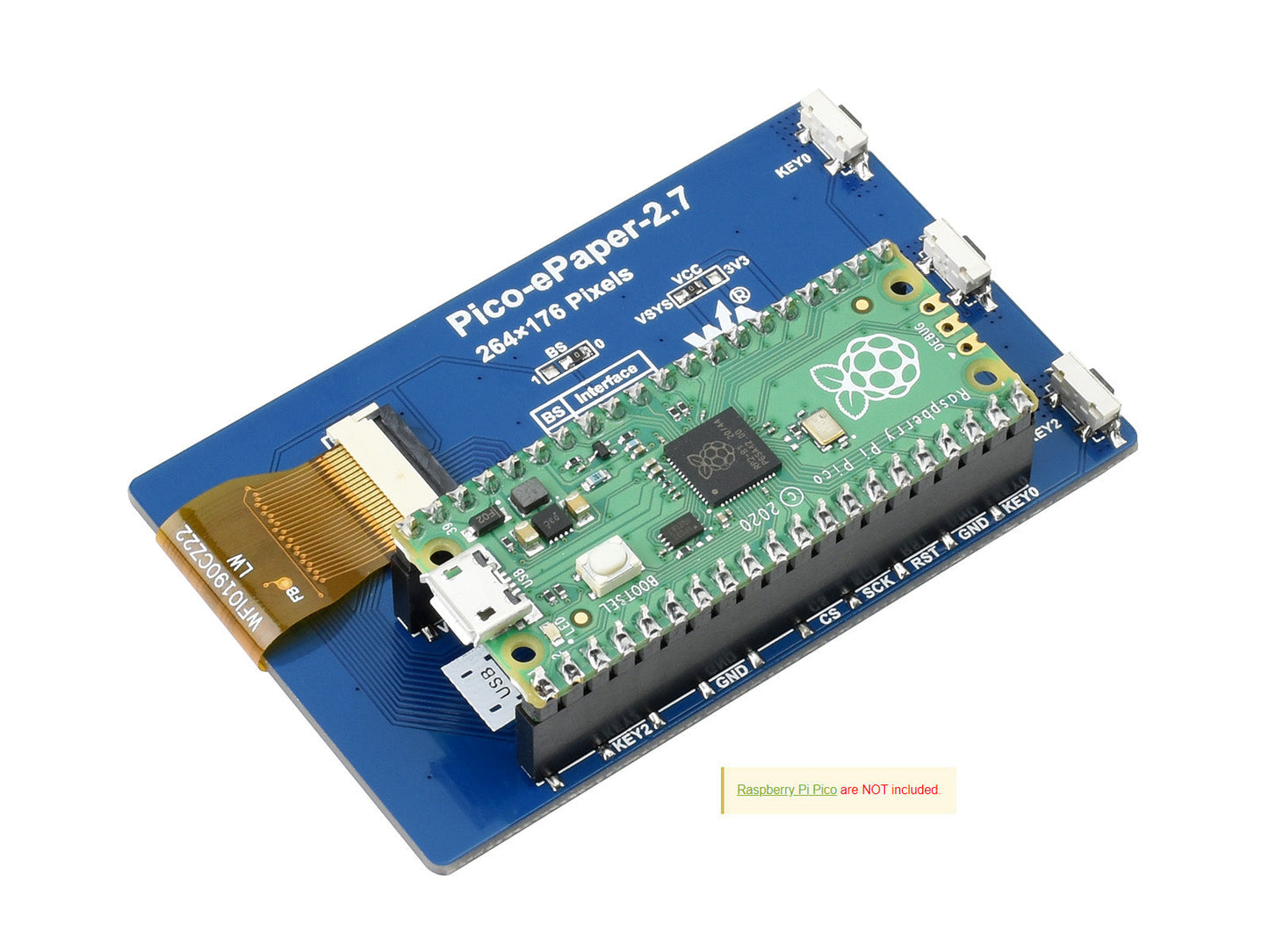

Raspberry Pi Pico Header Compatibility

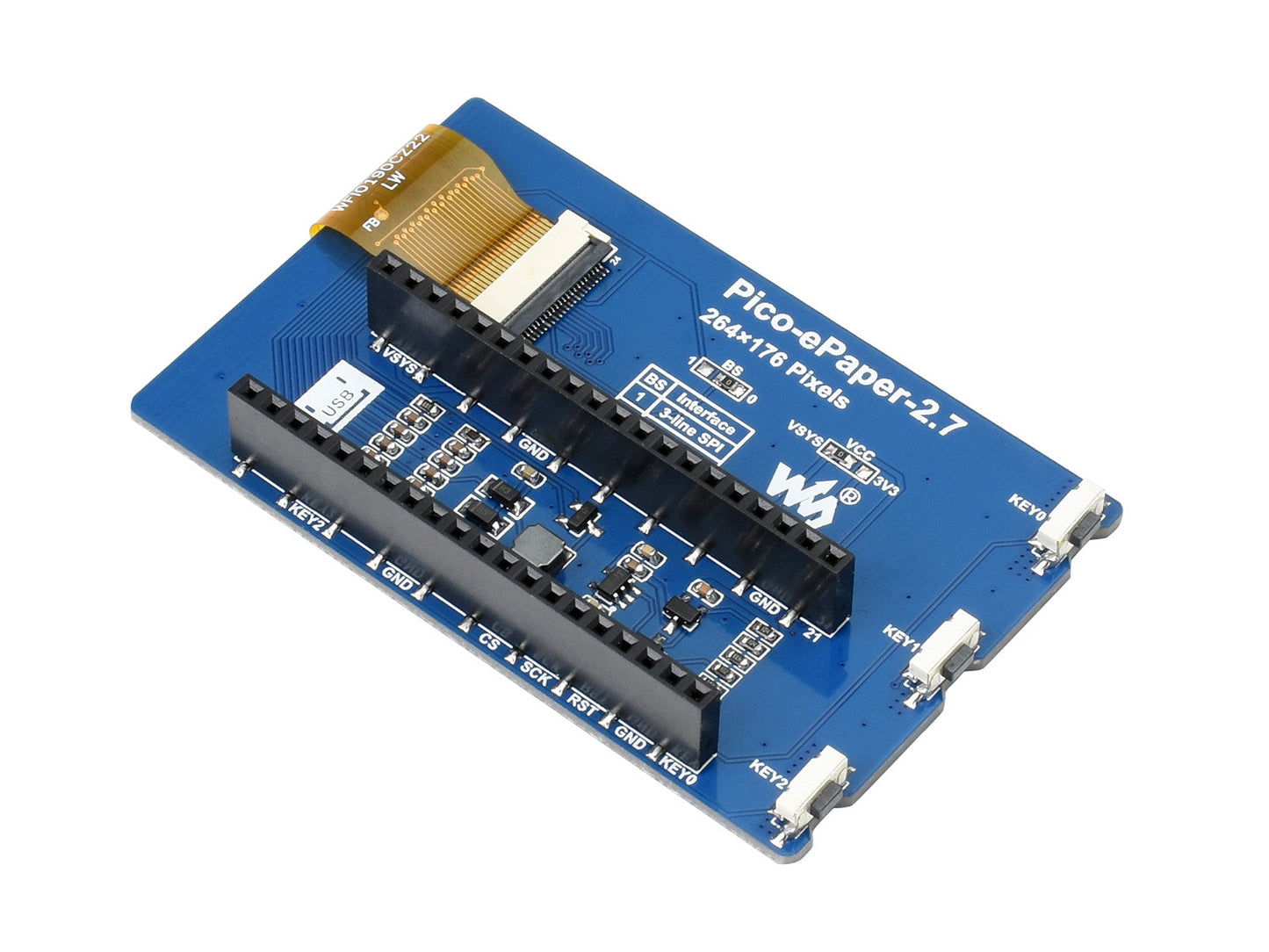

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
3x User Buttons For Easy Interacting

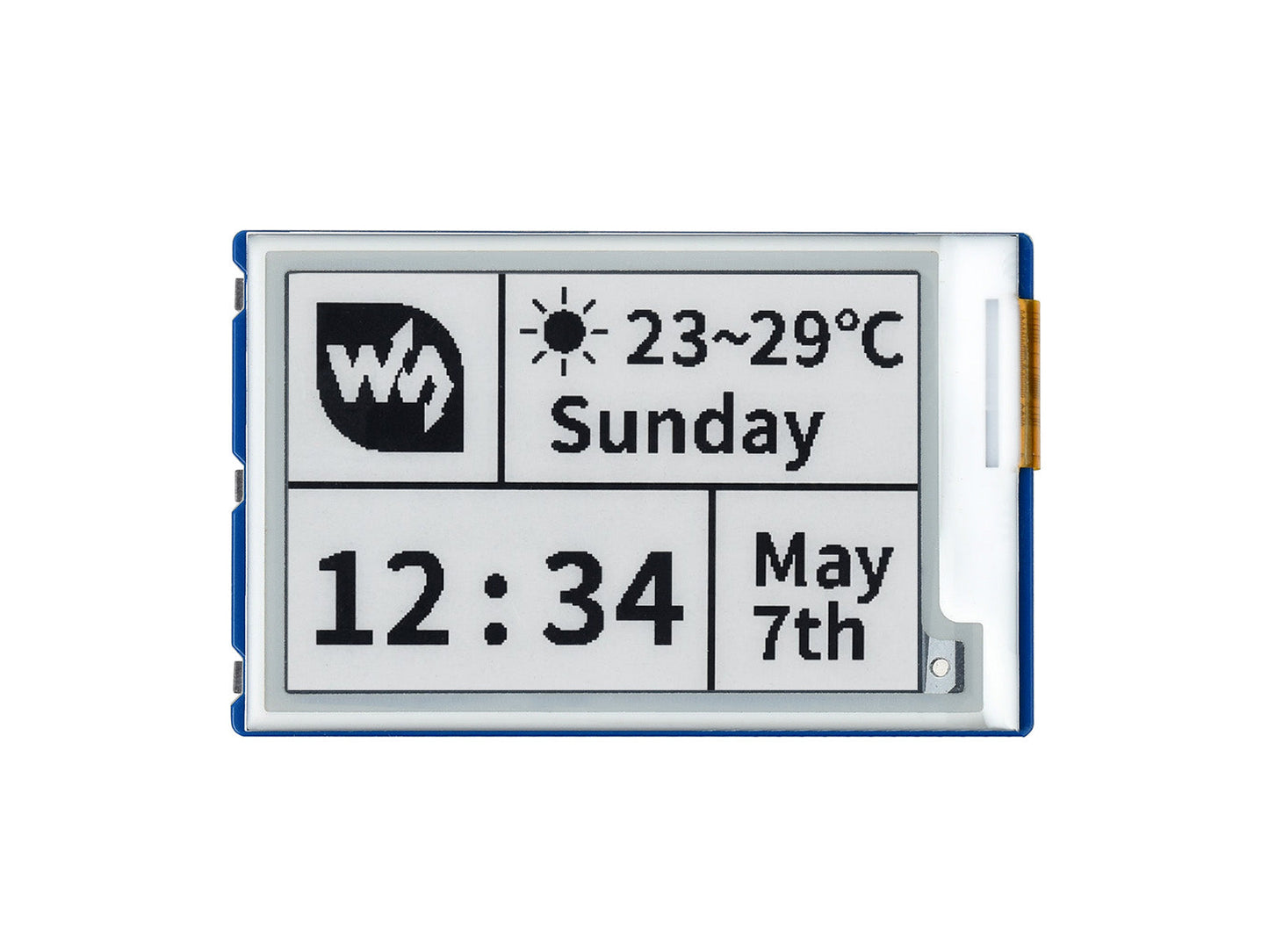

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Pinout Definition
Outline Dimensions




PACKAGE CONTENT

Weight: 0.025 kg

  1. Pico-ePaper-2.7 x1

  1. It usually takes about 0.3s to partially refresh the display
