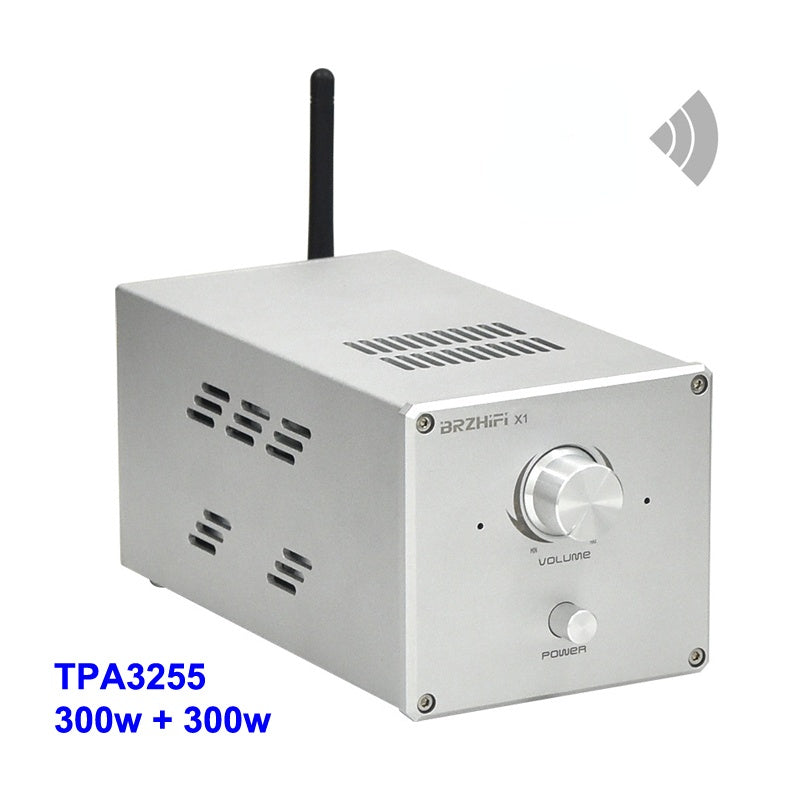

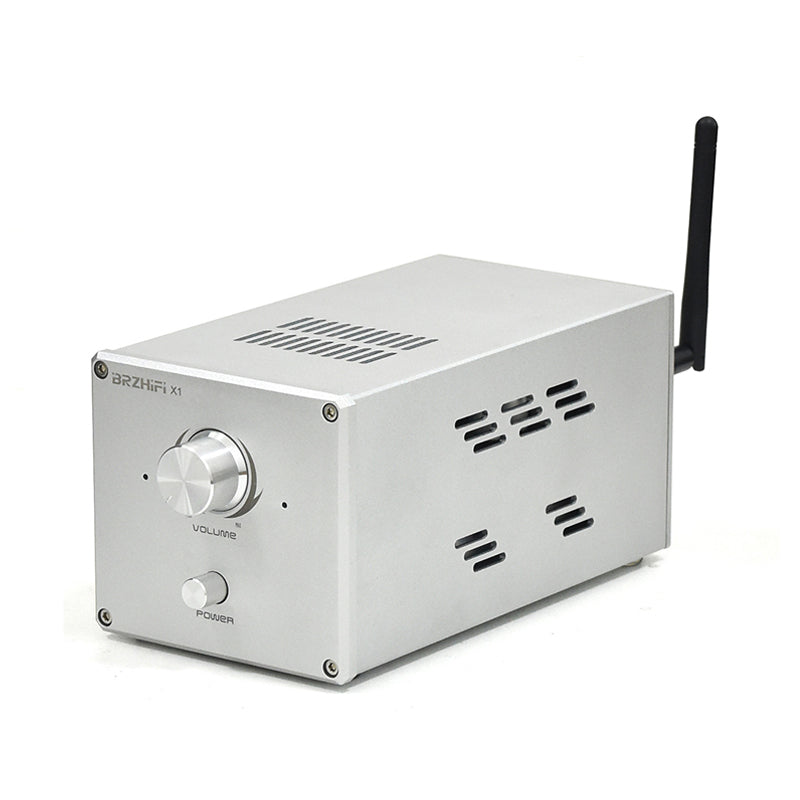

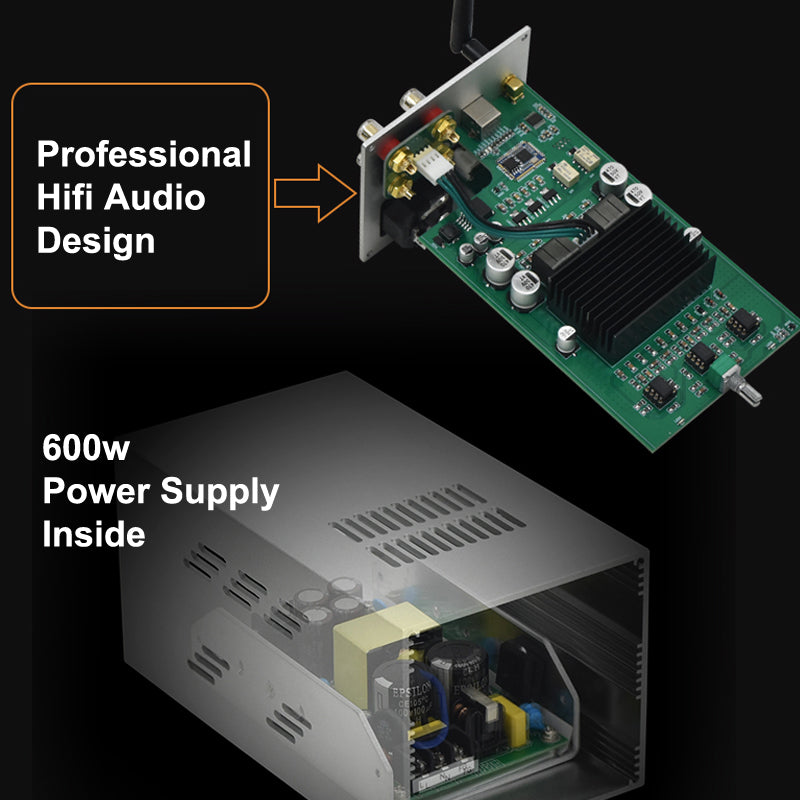

2*300W TPA3255 High Power Amplifier APTX-HD NE5532 DAC 2.0 Channel PCM5102A Hifi Stereo Class D Audio Digital AMP pcb assembly Customize

     TPA3255 is a high-performance Class-D power amplifier chip, which has Class-D efficiency and can bring true high-end sound quality circuits. The device features advanced integrated feedback design and a proprietary high-speed gate driver error correction function (PurePath ™ Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the entire audio frequency band while exhibiting perfect sound quality. The device operates in AD mode. When THD is 10%, it can drive up to two 315W / 4R loads and two 150W (unclipped power) / 8R loads, and has a 2 VRMS analog input interface to support high-performance DAC (Eg TI's PCM5242) seamless connection. In addition to excellent audio performance, the TPA3255 also has the advantages of high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved by 85mR MOSFET and optimized gate driver scheme. Compared with the traditional discrete implementation scheme, this scheme can significantly reduce idle loss.

Working Type: Class D

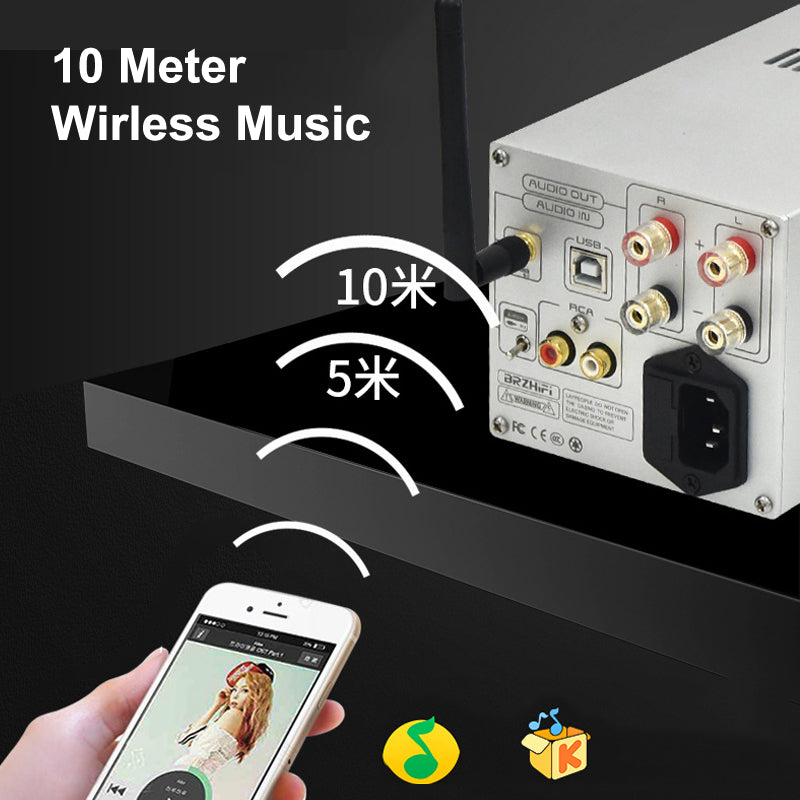

Blth : QC3034 Blh 5.0
                   SBC/AAC/APTX/APTX-LL/APTX-HD

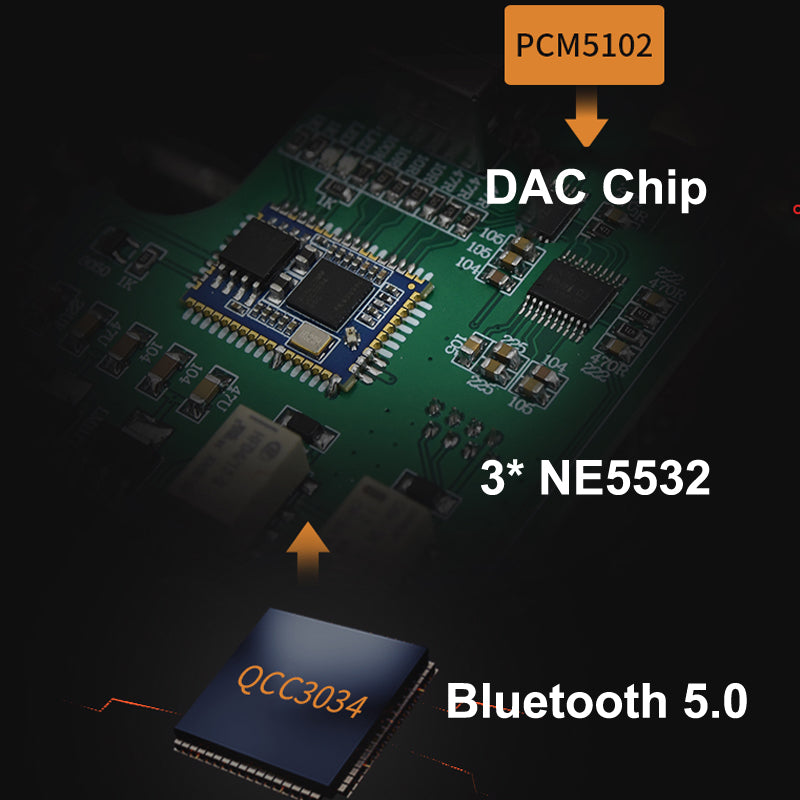

AMP Chip: TPA3255
DAC Chip: PCM5102A
OP-AMP Chip: 3*NE5532
Quiescent Current: 60mA
Work Efficiency:> 90%
Output Power:
315W / 4Ω, 10% Distortion
185W / 8Ω, 10% Distortion
260W / 4Ω, 1% Distortion
150W / 8Ω, 1% Distortion

Frequency Response: 20Hz to 20KHz
Dynamic Range:> 100dB
SNR: > 111dB
Size: 101 * 93 * 184MM
