Lonten Technology

2.23inch OLED Display Module For Raspberry Pi Pico 128x32 Pixels SPI/I2C Interface Custom PCB rechargeable fan pcba Customize

2.23inch OLED Display Module For Raspberry Pi Pico 128x32 Pixels SPI/I2C Interface Custom PCB rechargeable fan pcba Customize

Regular price $18.00 USD
Regular price $58.00 USD Sale price $18.00 USD
Sale Sold out

Raspberry Pi Pico is NOT included.
The package only includes the OLED.

DESCRIPTION

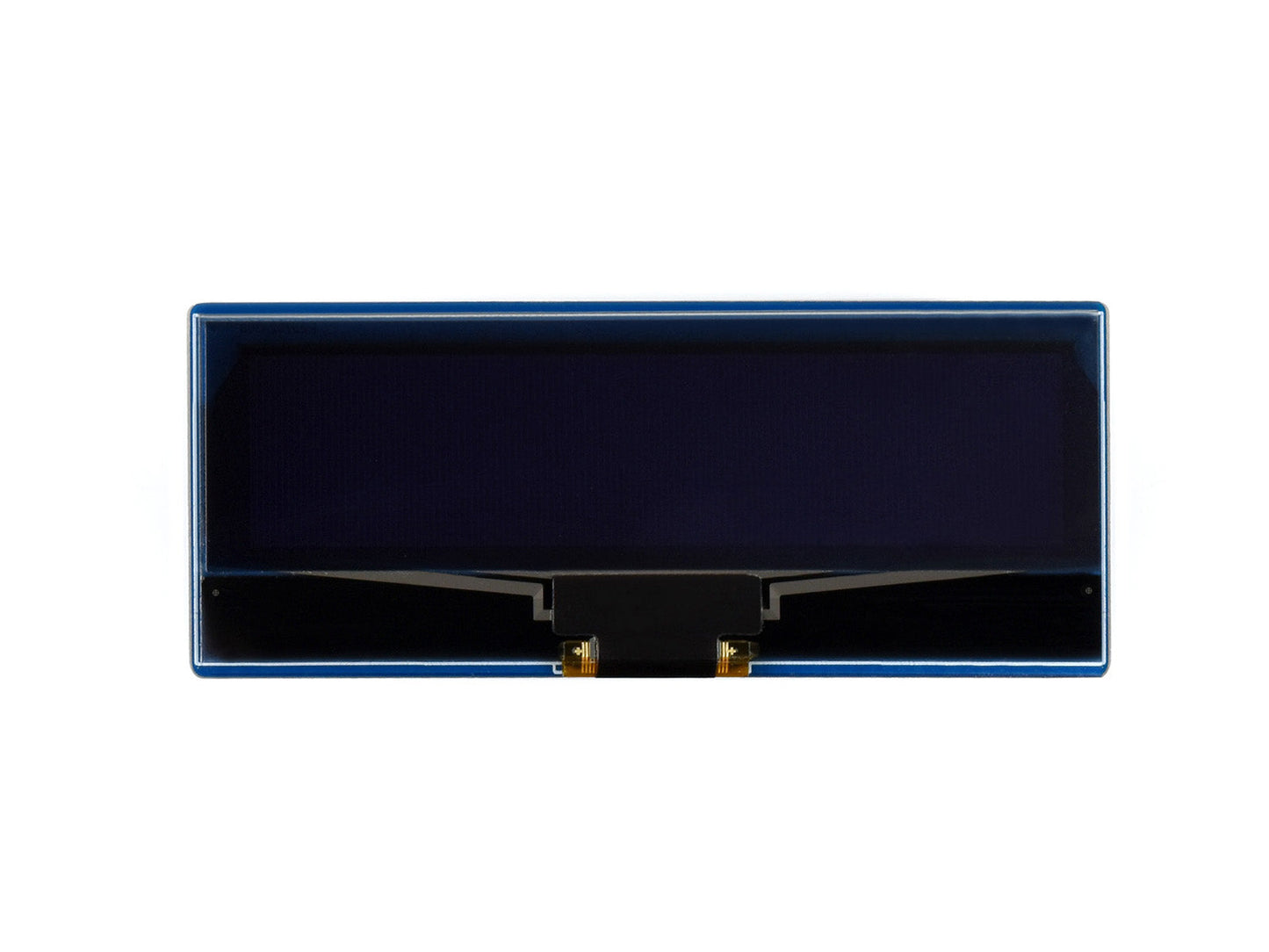

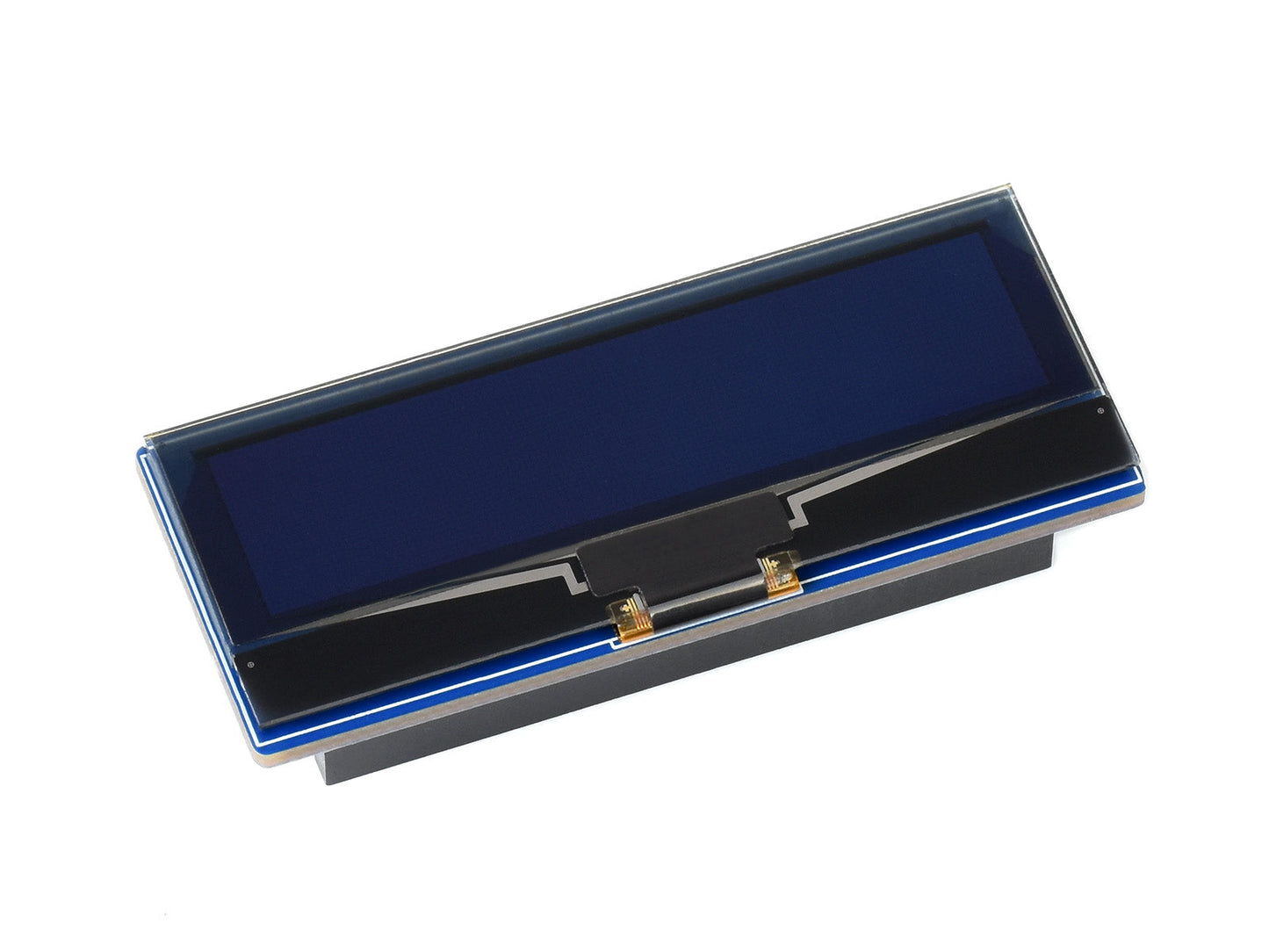

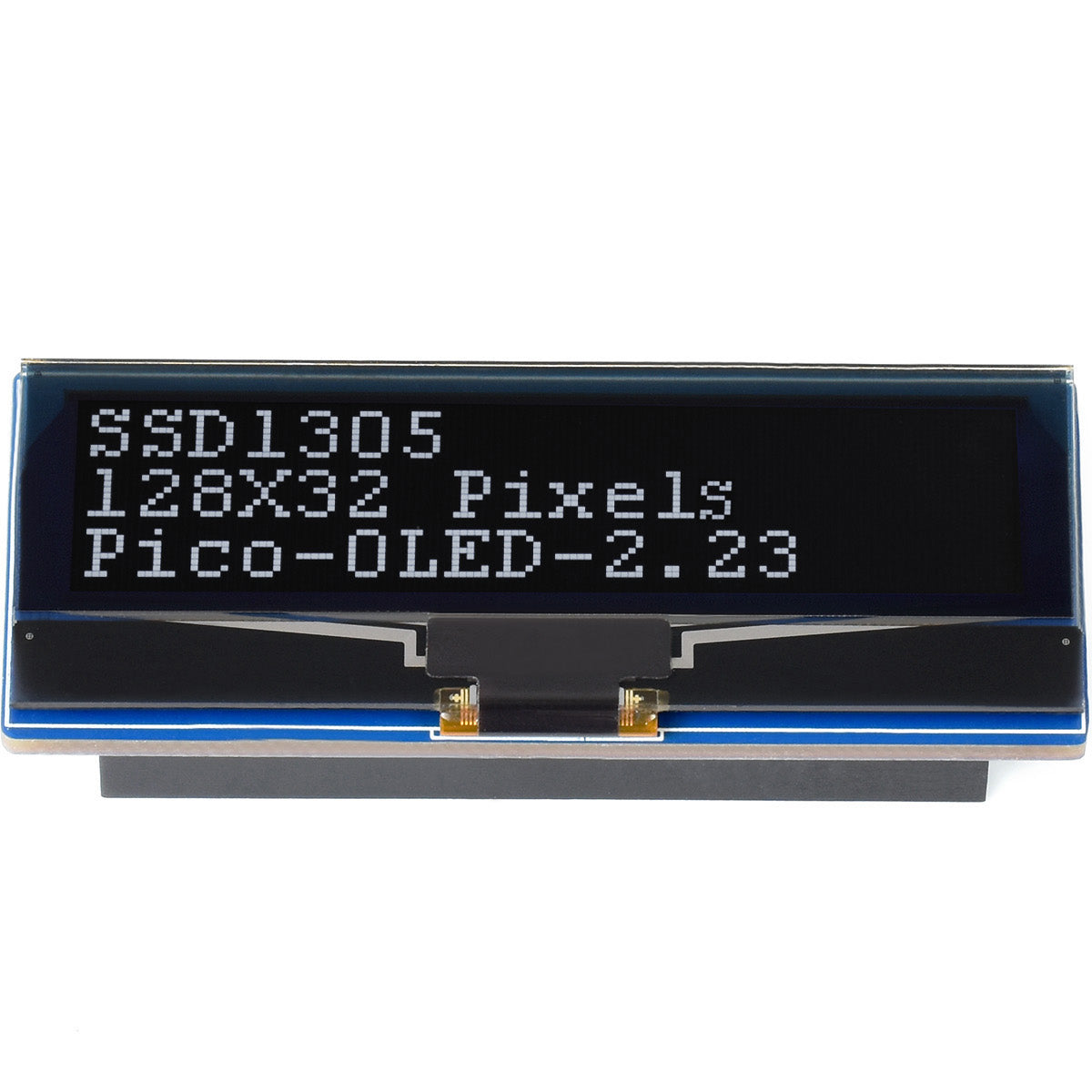

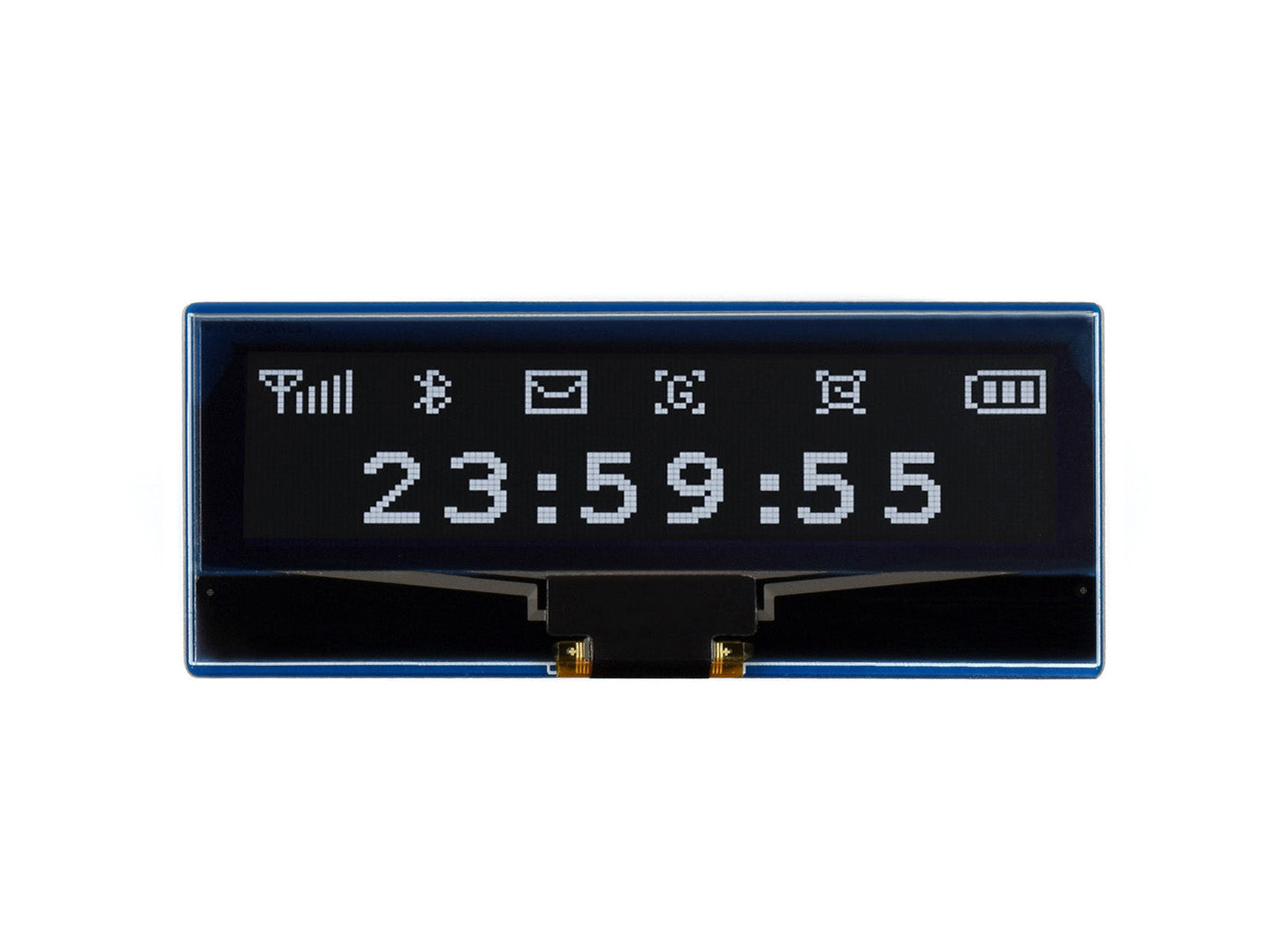

2.23inch OLED Display Module For Raspberry Pi Pico, 128X32 Pixels, SPI/I2C Interface



2.23" OLED Display Module For Pico

Embedded SSD1305 Driver, Using SPI/I2C Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size2.23"

  • Resolution128X32

  • Display ColorBlack / White

  •
  • InterfaceSPI/I2C

  • Display PanelOLED

  • DriverSSD1305

Features At A Glance
  • Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

LOGICAL VOLTAGE

3.3V

VIEWING ANGLE

>160

OPERATING VOLTAGE

3.3V/5V

RESOLUTION

128X32 pixels

COMMUNICATION INTERFACE

4-wire SPI, I2C

DISPLAY SIZE

55.02 X 13.10mm

DISPLAY PANEL

OLED

PIXEL SIZE

0.41 X 0.39mm

DRIVER

SSD1305

DIMENSIONS

63.00 X 26.00mm

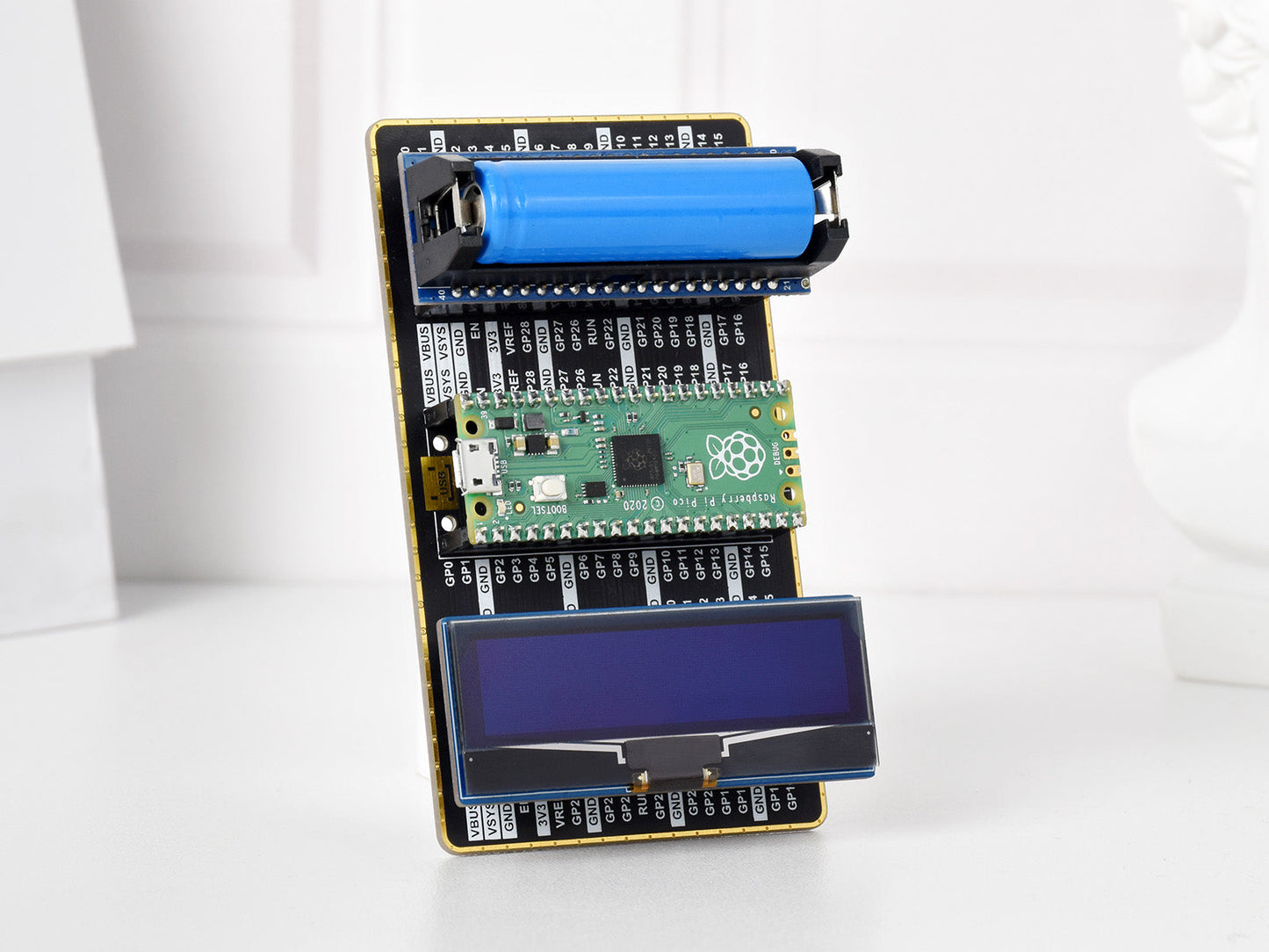

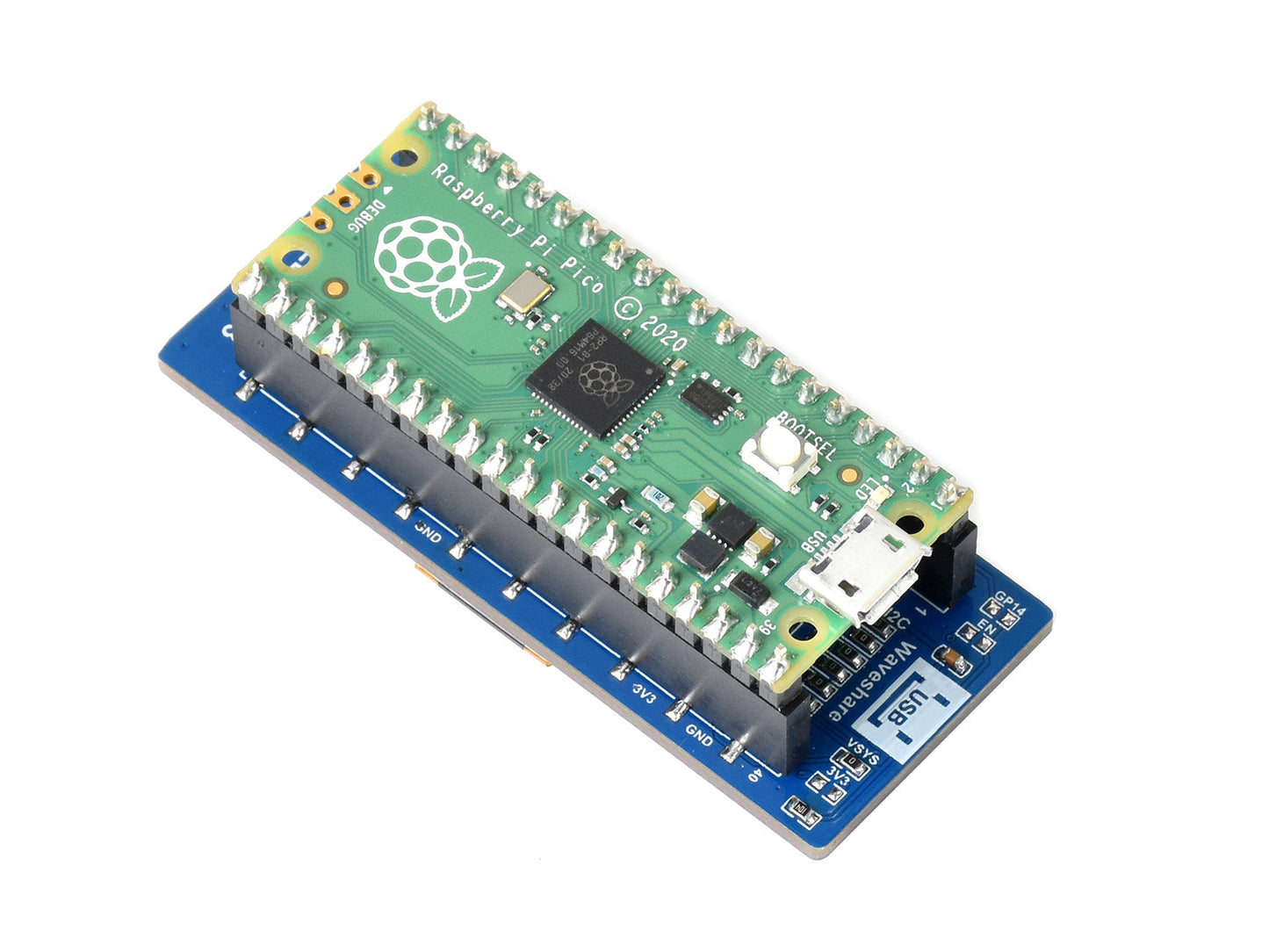

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions



PACKAGE CONTENT




Weight:0.016 kg

  1. Pico-OLED-2.23 x1
