2*100W TDA7498 Class D Digital Power Audio Amplifier Board Dual Channel Audio Stereo Amplifier HIFI DIY pcb assembly Customize

Description:
TDA7498 is a 100W + 100W class D audio amplifier. The IC chip adopts the single power supply, mainly used in home theater and active speakers. And naked cooling pad up TDA7498 adopted EPU hyper-threading encapsulation.

Features:
Output power:100W+100W (VCC+32V,RL=4ohm,THD=10%
Wide: 14-30v signal power supply
Level 4 gain optional: (21.6dB,27.6dB,31.1dB,33.1dB)
Using differential input to reduce common-mode noise significantly
Has the pattern of the fault and silent mode
With intelligent protection function
Have overheating protection function
The input voltage: DC15-32V
Output power:100W*2
Output resistance: 4-8ohm
Line type: D types
Chip: TDA7498
Harmonic distortion: Po=1W/0.05%
Frequency response range: 18-100KHZ
Switching frequency: 360KHz
Signal to noise ratio: 110db
Product size:about(L*W): 96*64*25mm

Package Contents:

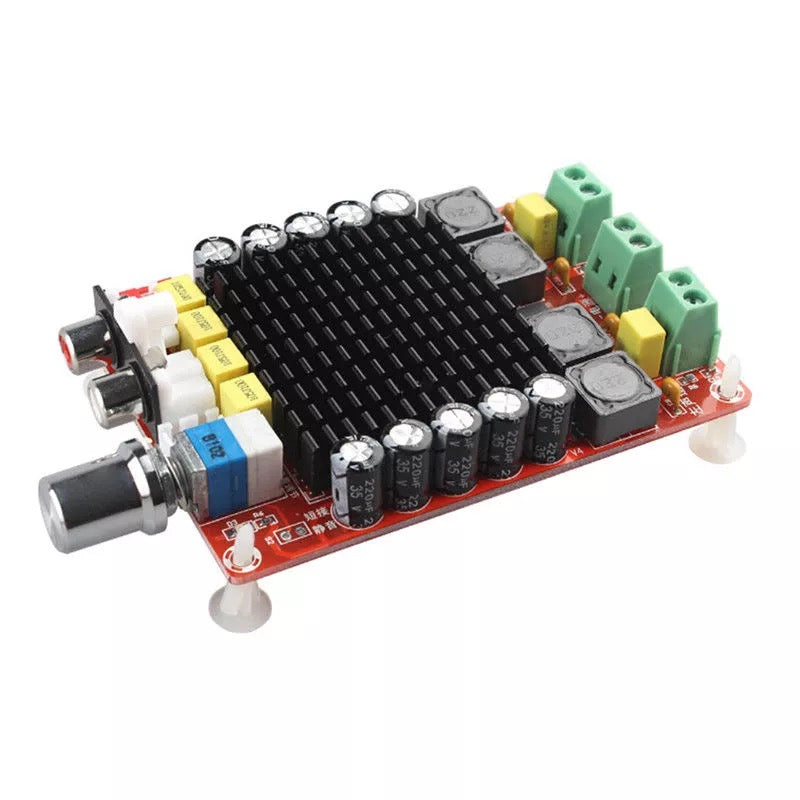

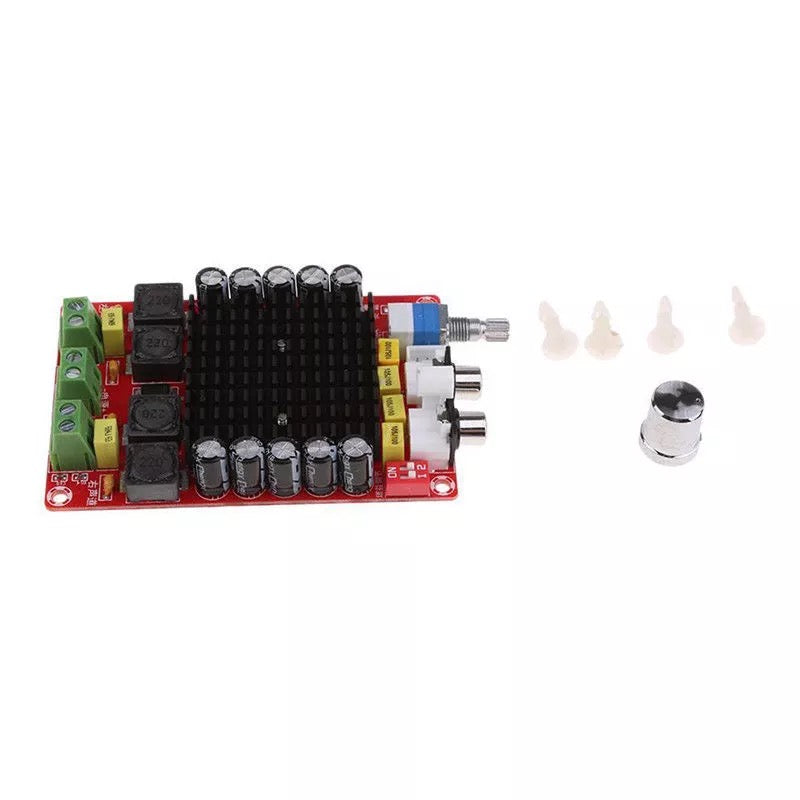

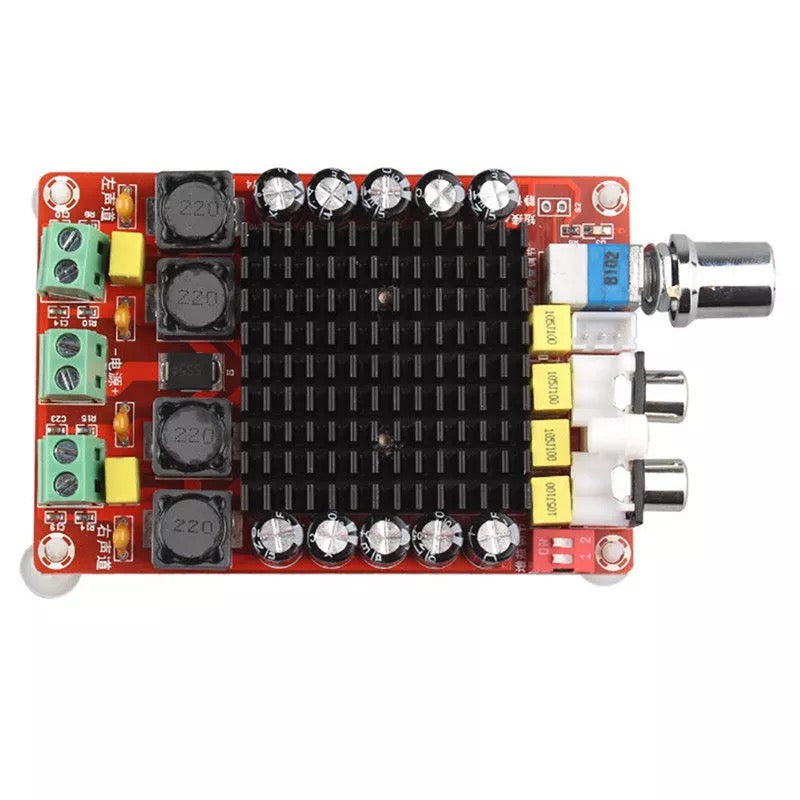

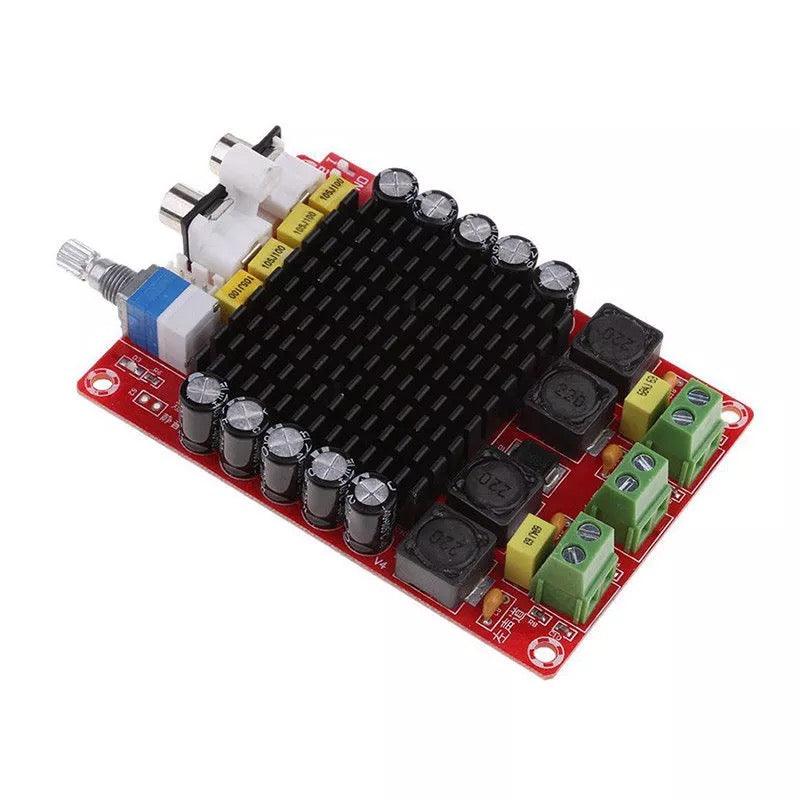

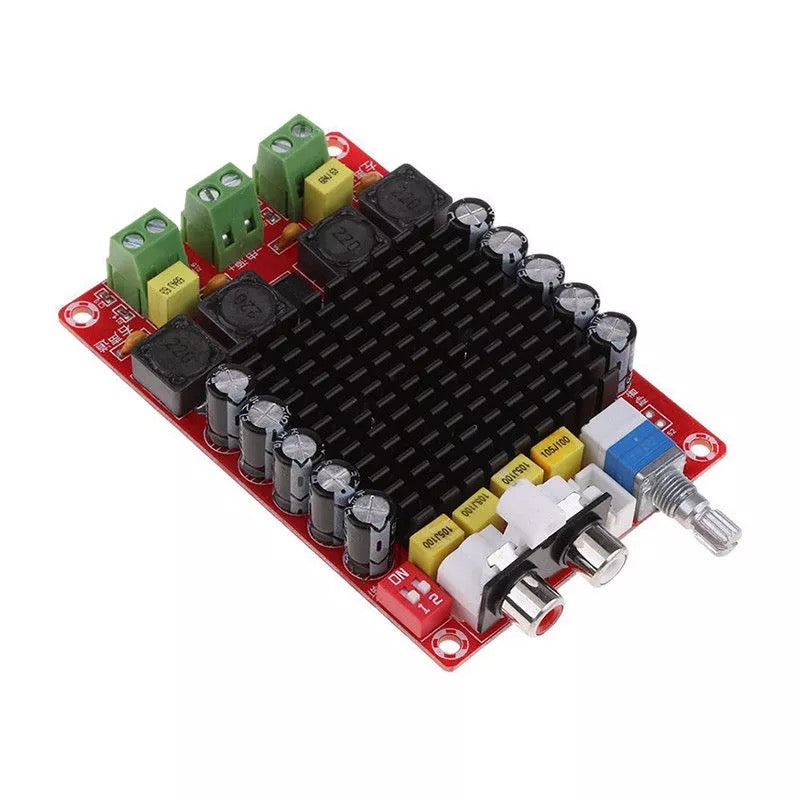

1 x TDA7498 Amplifier Board
