Custom 13.3 inch display capacitive touch module kit1920x1080 IPS HD LCD Module Car Raspberry Pi 3 10 point capacitive touch Monitor Manufacturer
Custom 13.3 inch display capacitive touch module kit1920x1080 IPS HD LCD Module Car Raspberry Pi 3 10 point capacitive touch Monitor Manufacturer
Regular price
$79.54 USD
Regular price
$79.54 USD
Sale price
$79.54 USD
Unit price
per
Couldn't load pickup availability
13.3 inch 8 Bit Display Screen 1920x1080 IPS 1080P HD LCD Module Car Raspberry Pi 3 Game PS3 XBox PS4 Monitor
Product Description
Specification:
With Fixed Hole
LCD type IPS
Screen Size Inside 13.3 inch
Resolution 1920*1080*RGB FHD 16:9
Response Time: 2(Typ.)(Tr+Td)(ms)
Color 1670w Colors 8-Bit
Refresh frequency 60Hz
Screen Surface Haze 0% (Hrad coating 3H)
Brightness 350 cd/m (Typ)
Visual angle <170
Contrast 800:1
Color Gamut Typ 72% NTSC(CIE1931)
Blacklight WLED
Signal Interface HDMI
Voltage USB5V2A/DC12V 2A-4A (Typ.)
Certification standards RoHS
Touch Screen No
Case Material No
Package Yes
Attention Please:
1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.
Capacitive Touch Screen parameters and description
15.6 inch multi-point capacitive touch Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play. Capacitive touch screen linuxWIN7810 and Android system plug and play size : 356.2mmX208mmX2.0mm
contenido del paquete
1 *13.3 inch LCD

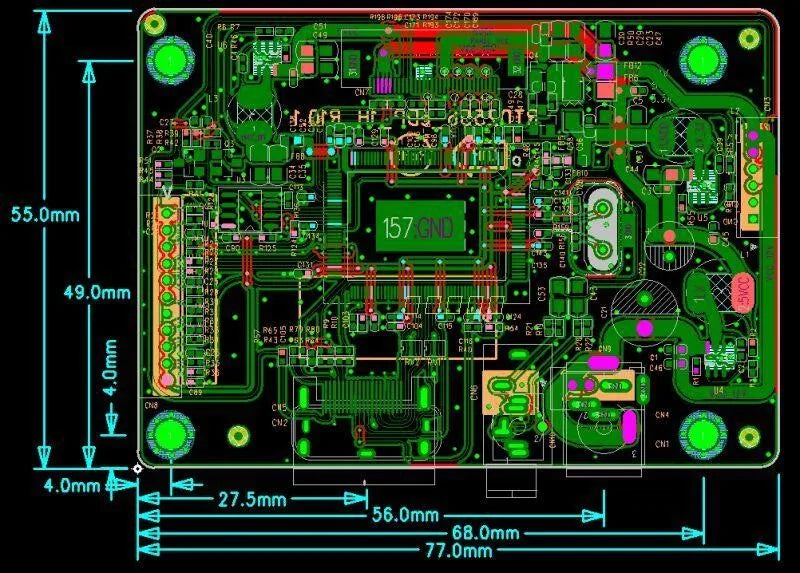

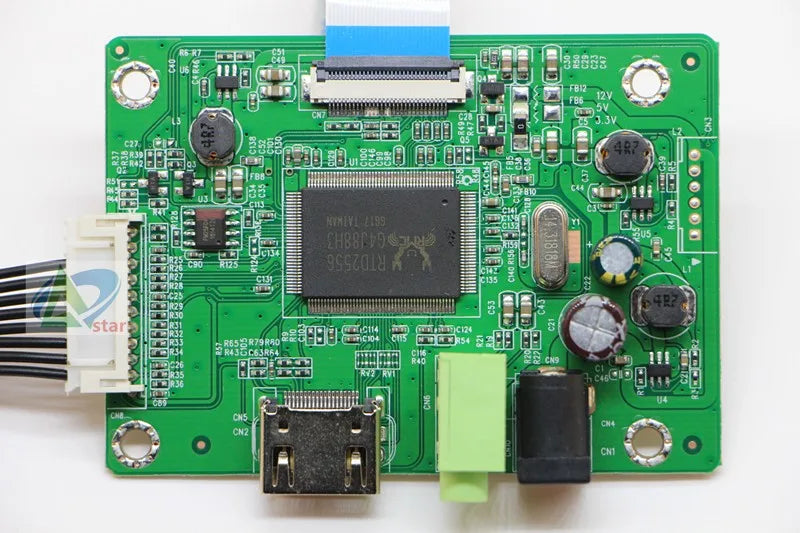

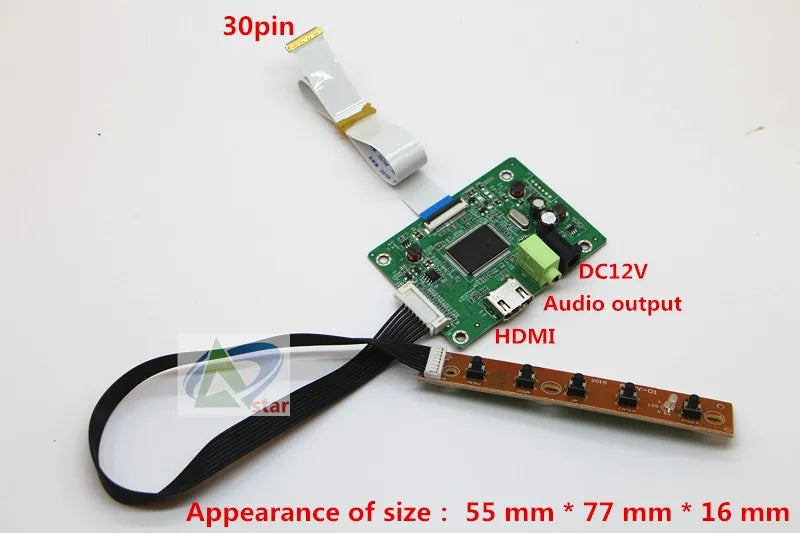

1 * Driver board
1 * EDP cable
1 * teclado OSD
Touch display module contenido del paquete
1 * Capacitive Touch Panel
1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *13.3 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD

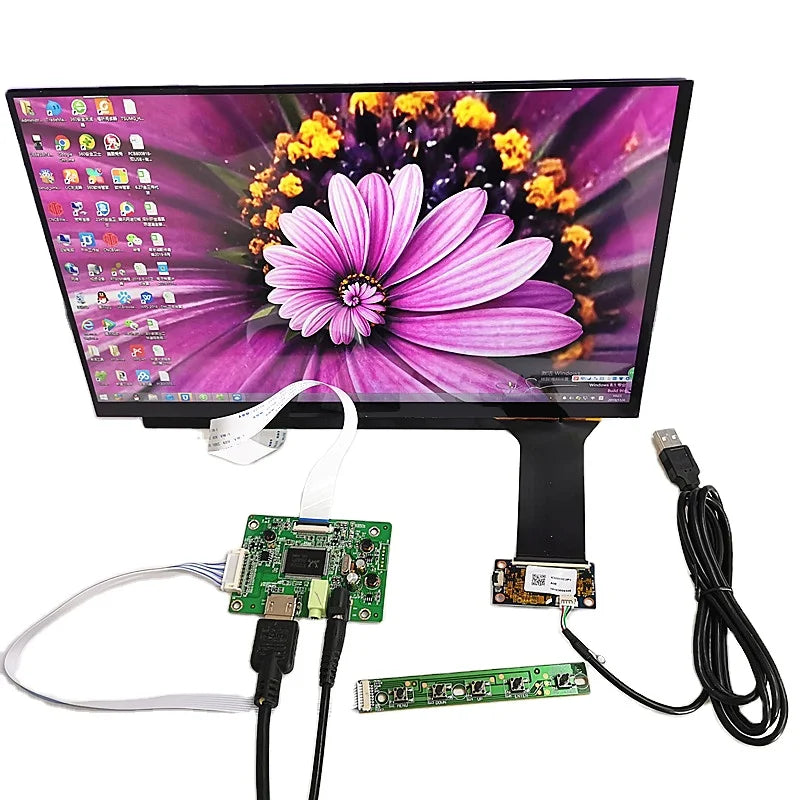

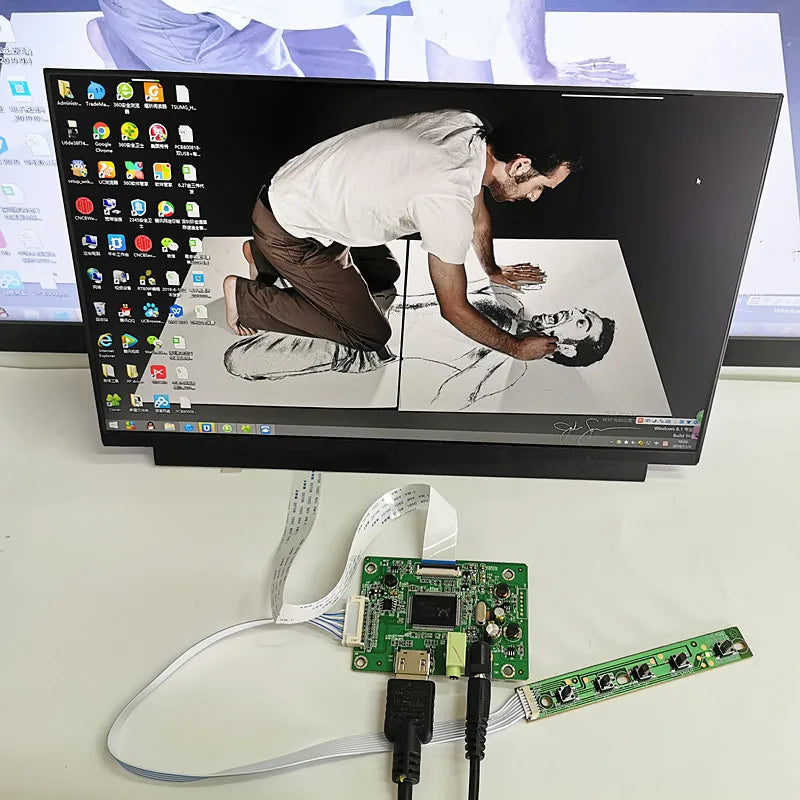

Product Show
