Amplifier

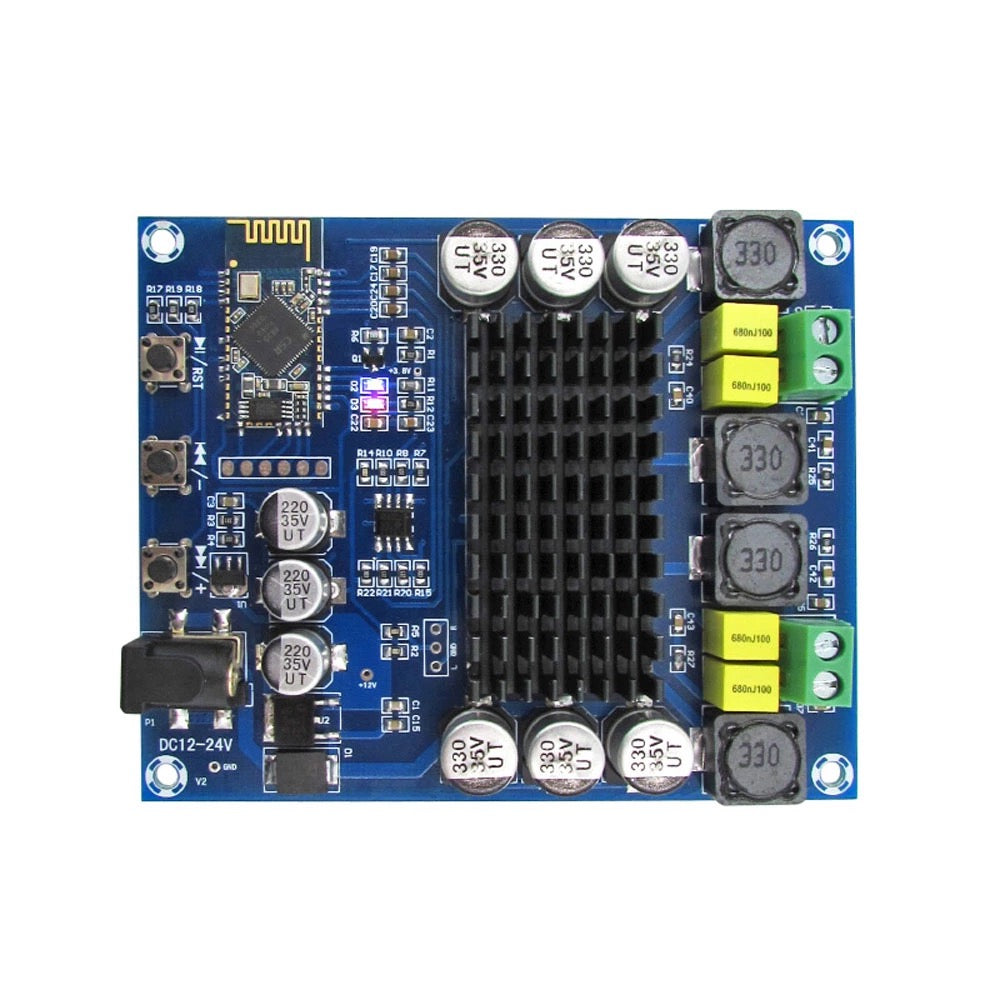

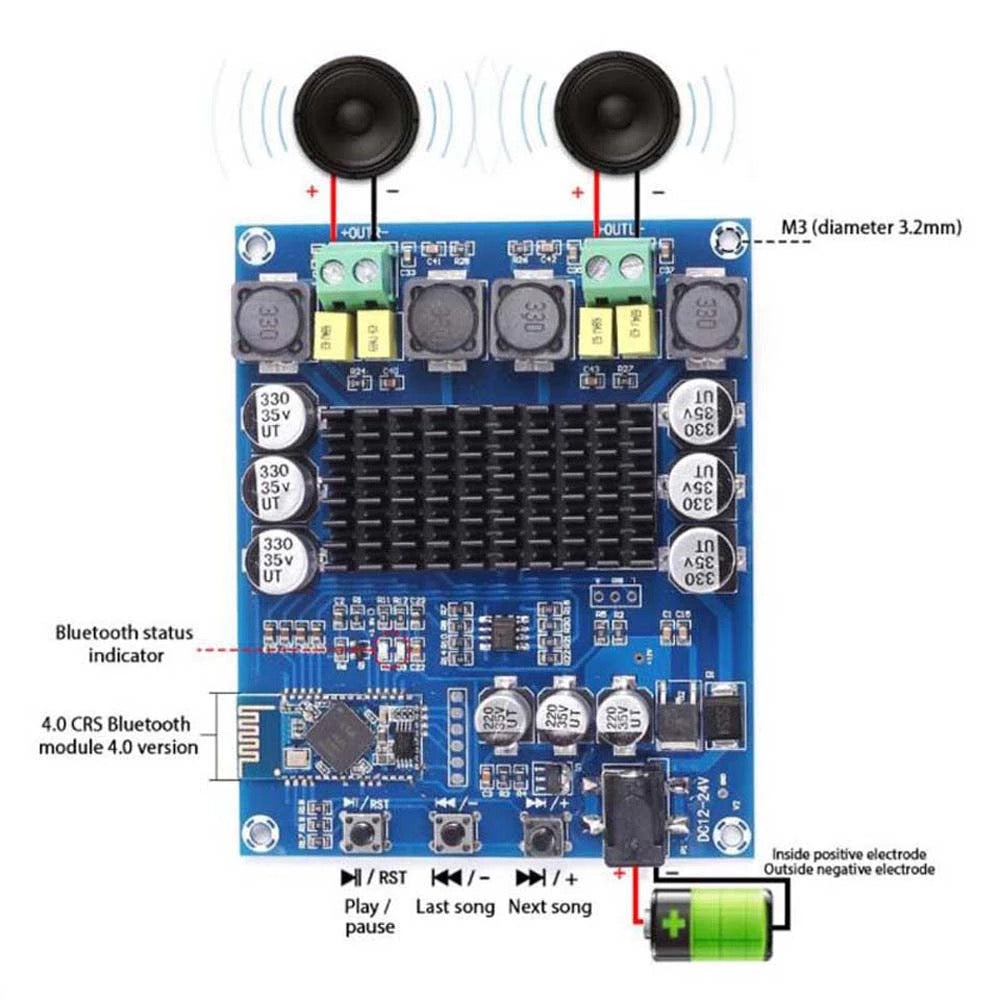

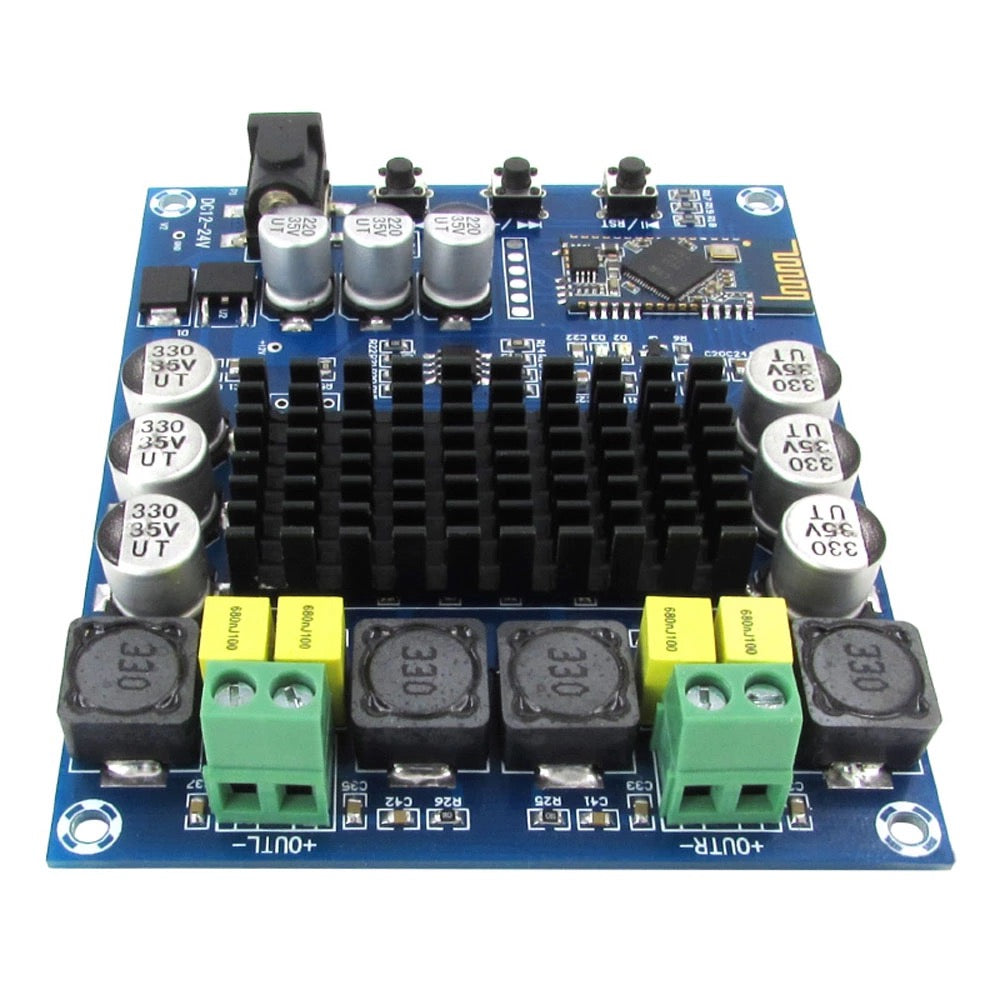

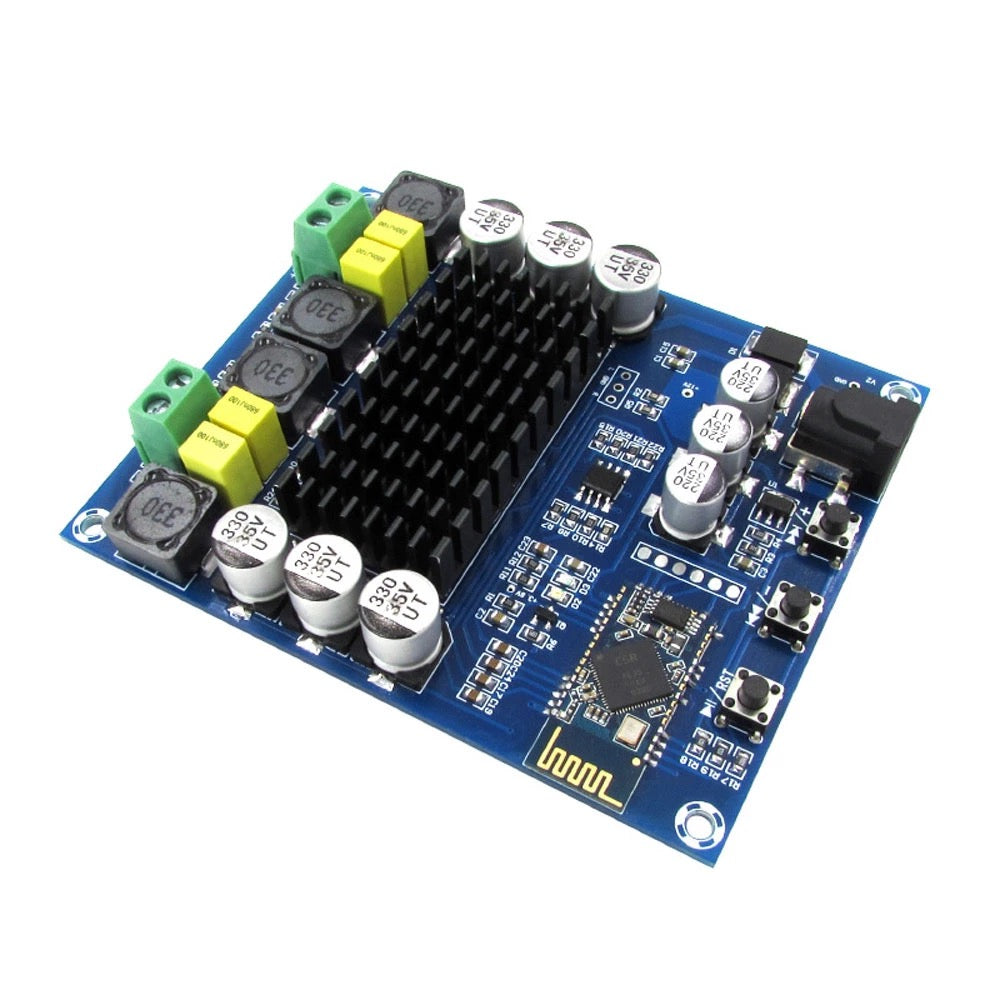

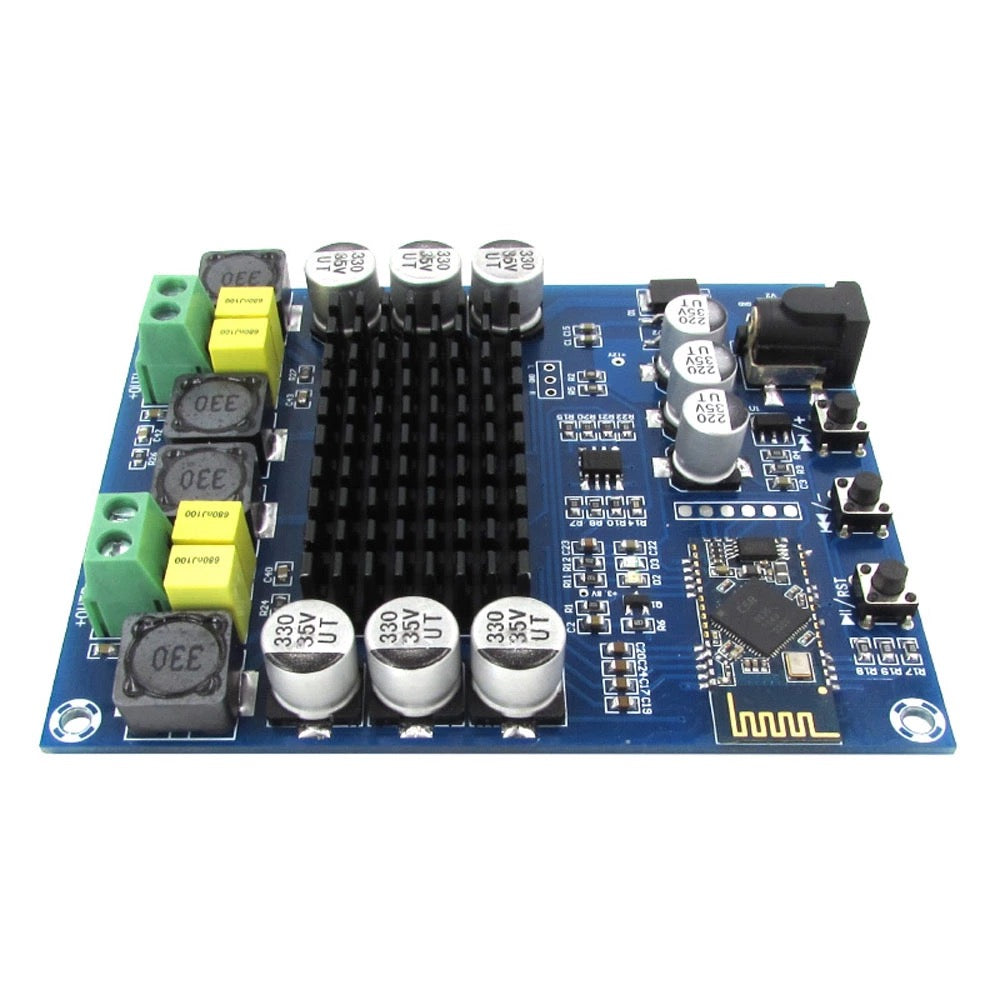

120W*2 TPA3116D2 Audio Power Amplifier Board Btm835/csr8635(4.0) Dual Channel TPA3116 Stereo Amplifiers pcb assembly Custom
120W*2 TPA3116D2 Audio Power Amplifier Board Btm835/csr8635(4.0) Dual Channel TPA3116 Stereo Amplifiers pcb assembly Custom
Regular price
$16.37 USD
Regular price
$18.05 USD
Sale price
$16.37 USD
Unit price
per
Couldn't load pickup availability
Description:
Chip Type: TPA3116D2
Blth module: btm835/csr8635(4.0)
Transmission distance: Max 10m
Voltage: DC12-24V
Current: >3A
Output Power: 120Wx2
Efficiency ratio: >90%
Sound track: Dual track
Size: 98*80*18mm
BT module Parameters:
Specification: Blth V4.0
Modulation Mode: GFSK /4 DQPSK,8DPSK
Voltage: 3.3-4.2V
Suppotr Blth Protocol: HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current: <30mA
Standby Current:<50uA
Temperature range: -40° to +80°
Wireledd Transmission Distance: 10m
Transmit Power: Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity: -80dBm<0.1%BER
Frequency Range: 2.4GHz-2.480GHz
External Interface: PIO,SPI,Audio in/out and PCM,USB
Audio Support: AAC,MPA,SBC,Stereo
Distortion Factor: <0.1%
Module Size: 21.9*14.1*1.8mm
Package Included:
1 x BT 4.0 Audio Receiver Digital Amplifier Board
Blth module: btm835/csr8635(4.0)
Transmission distance: Max 10m
Voltage: DC12-24V
Current: >3A
Output Power: 120Wx2
Efficiency ratio: >90%
Sound track: Dual track
Size: 98*80*18mm
BT module Parameters:
Specification: Blth V4.0
Modulation Mode: GFSK /4 DQPSK,8DPSK
Voltage: 3.3-4.2V
Suppotr Blth Protocol: HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current: <30mA
Standby Current:<50uA
Temperature range: -40° to +80°
Wireledd Transmission Distance: 10m
Transmit Power: Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity: -80dBm<0.1%BER
Frequency Range: 2.4GHz-2.480GHz
External Interface: PIO,SPI,Audio in/out and PCM,USB
Audio Support: AAC,MPA,SBC,Stereo
Distortion Factor: <0.1%
Module Size: 21.9*14.1*1.8mm
Package Included:
1 x BT 4.0 Audio Receiver Digital Amplifier Board
