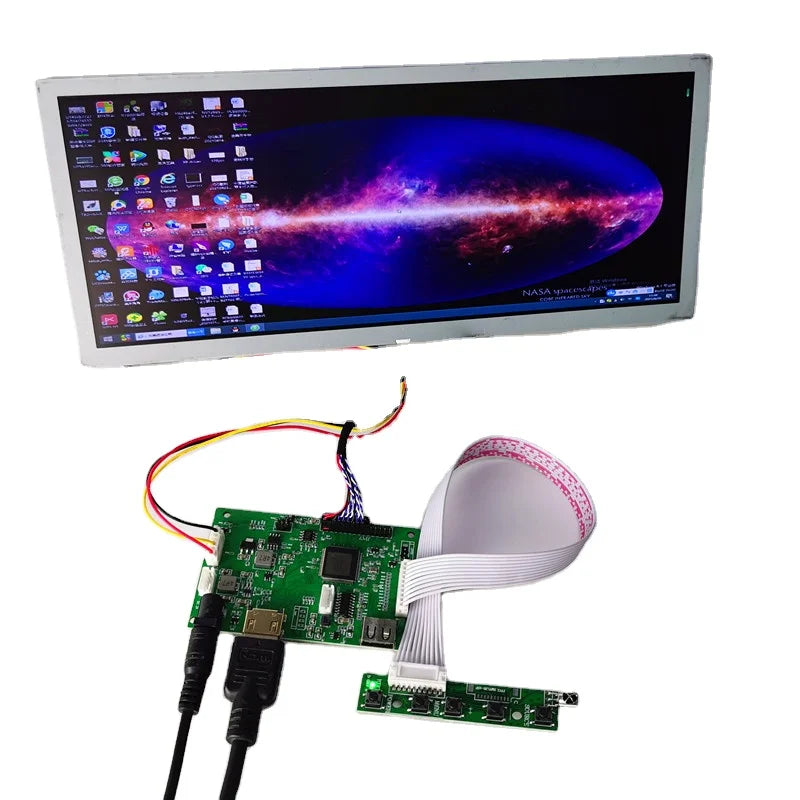

Custom 12.3 inch LCD display module kit HD/USB play 1280*480 for raspberry pi 3 Display Computer Temperature Memory Display DIY Kits Manufacturer

parameters and description

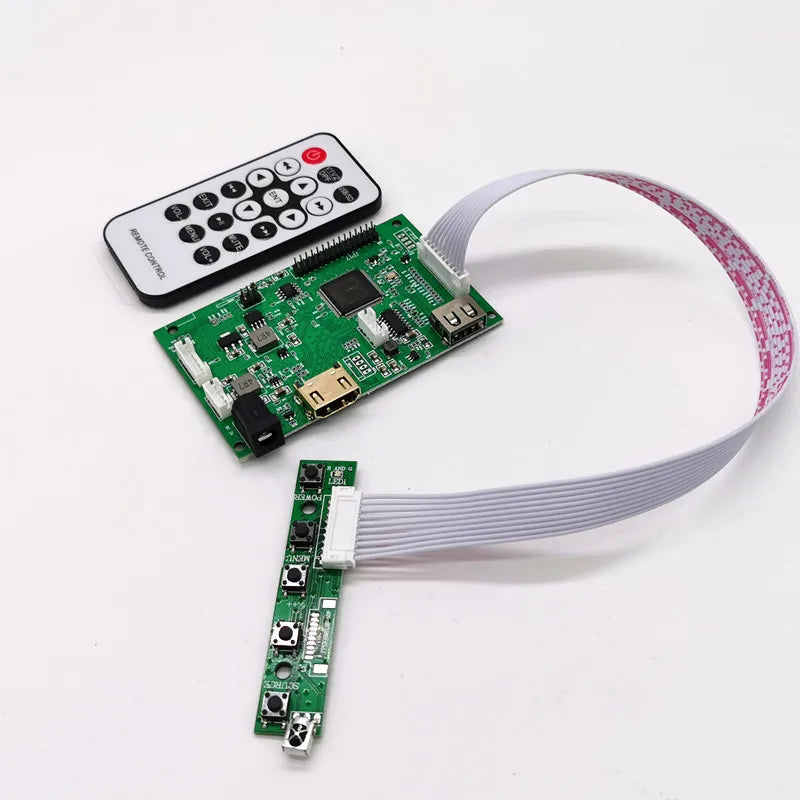

Drive motherboard specifications: (main features)

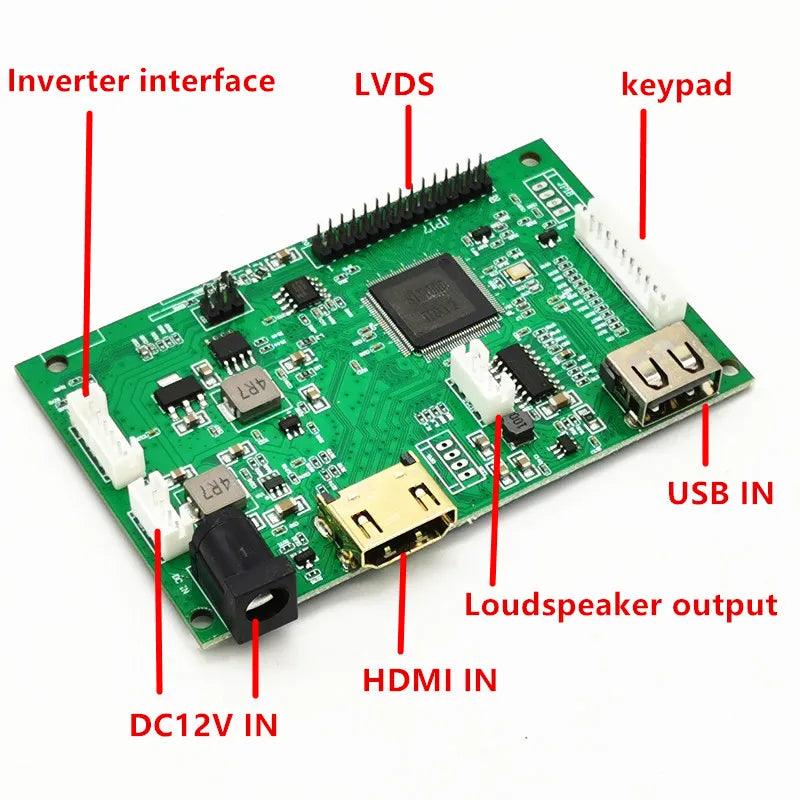

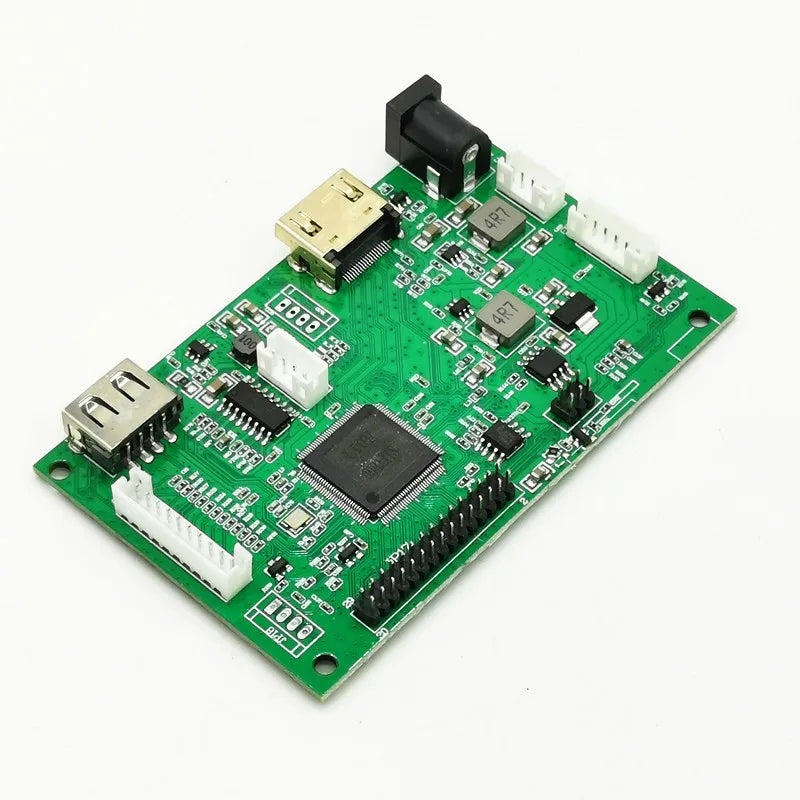

1. HD/USB Board Work for LVDS LCD Screen

2. Input HD USB

3. Output PANEL interface 2.0mm pitch 30PIN connector

4. USB support video playback

5. Power Input DC 12V2A-12V4A

OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English,French German etc.

key :POWER/ ENTER /MENU/ UP/ DOWN 5 button



LCD Specification:

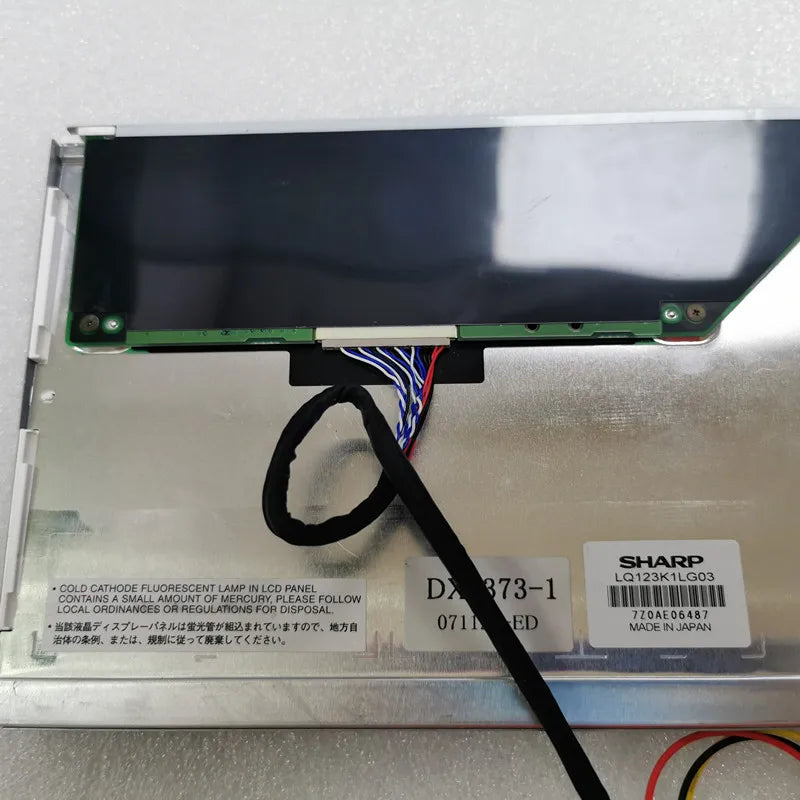

12.3" LQ123K1LG03 1280*480 LCD Screen:

Display Mode ADS, TN, Normally White, Transmissive

Resolution 1280(RGB)×480, DVGA, 111PPI

Outline Size 312.4(W)×130.4(H) ×26.4(D) mm

Display Area 291.84(W)×109.44(H) mm

Brightness 500 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 65/65/50/60 (Typ.)(CR≥10)

Signal Interface LVDS (1 ch, 8-bit) , 20 pins Connector

Backlight WLED

Input Voltage 3.3V (Typ.)



prompt

1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable

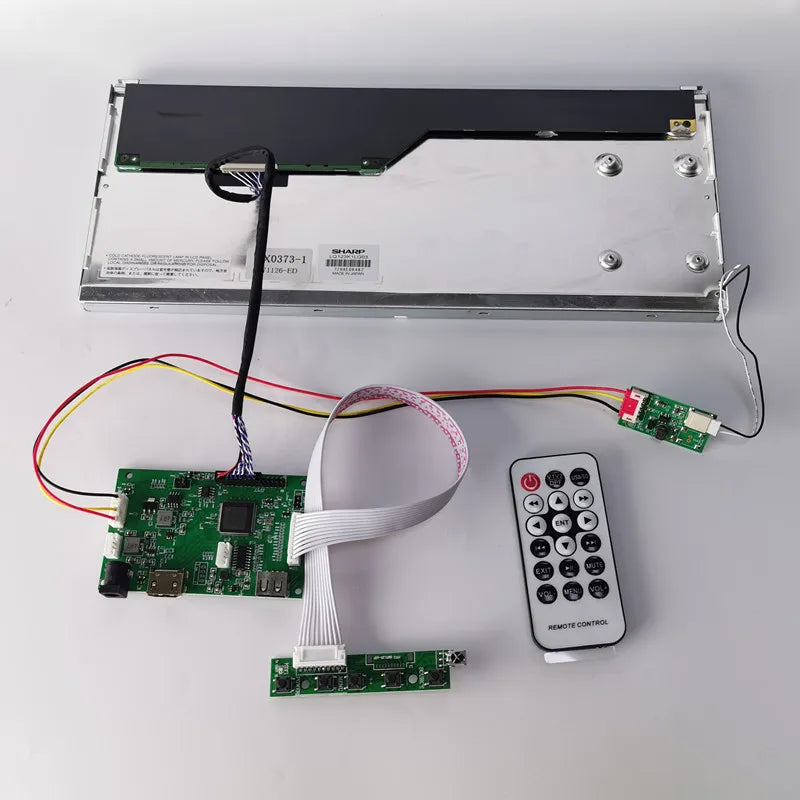

contenido del paquete

1 *12.3 inch LCD

1 * Driver board

1 * LVDS cable

1 * teclado OSD

1 * LED lamp controller

1 * Remote control



 Welcome Customize Order!
