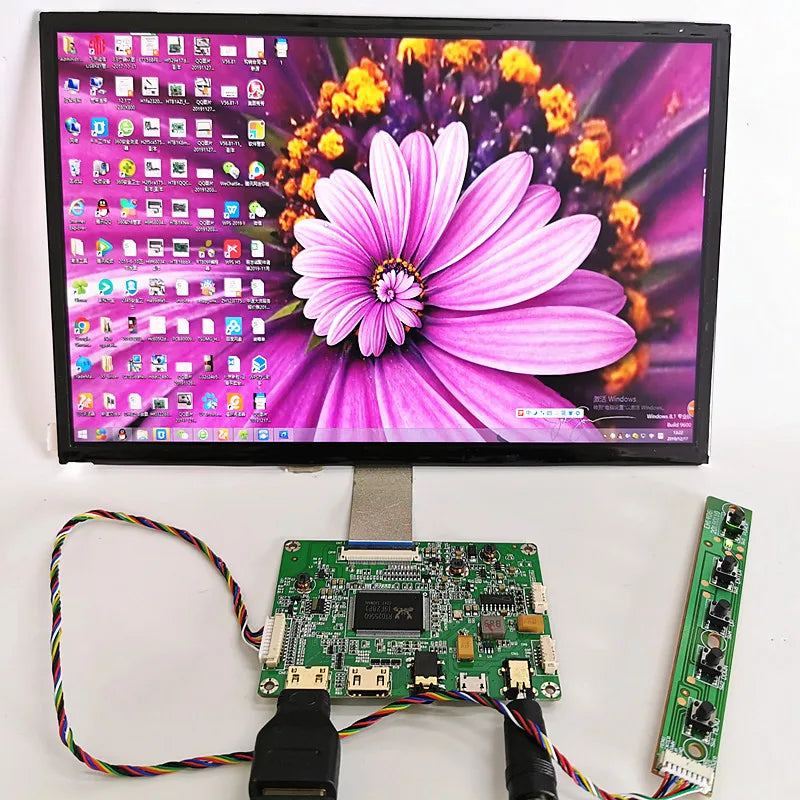

Custom 10.1 inch LCD display capacitive touch module kit 2560x1600 HD-compatible LCD Module Car raspberry pi 4 Game XBox PS4 Monitor Manufacturer

Specification:

With Fixed Hole
LCD type IPS
Screen Size Inside: 10.1 inch
Model Name: VVX10T025J00
Resolution: 2560(RGB)×1600 (WQXGA)
Active Area(mm): 216.96 × 135.6 (H×V)
Outline(mm): 229.75 × 151.22 (H×V)
Response Time: 30 (Max.)(Tr+Td) ms
Color 1670w Colors 8-Bit
Refresh frequency 60Hz
Luminance: 400 (Typ.)(cd/m²)
Viewing Angle: 80/80/80/80 (Min.)(CR≥10)
Contrast: 1000 : 1 (Typ.) (TM)
Color Depth: 16.7M 72% NTSC
Blacklight WLED
Signal Interface 2mini HD
Voltage USB5V2A/DC12V 2A-4A (Typ.)
Certification standards RoHS

Attention Please:

1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.

Capacitive Touch Screen parameters and description

10.1 inch multi-point capacitive touch

Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.

Capacitive touch screen linuxWIN7810 and Android system plug and play

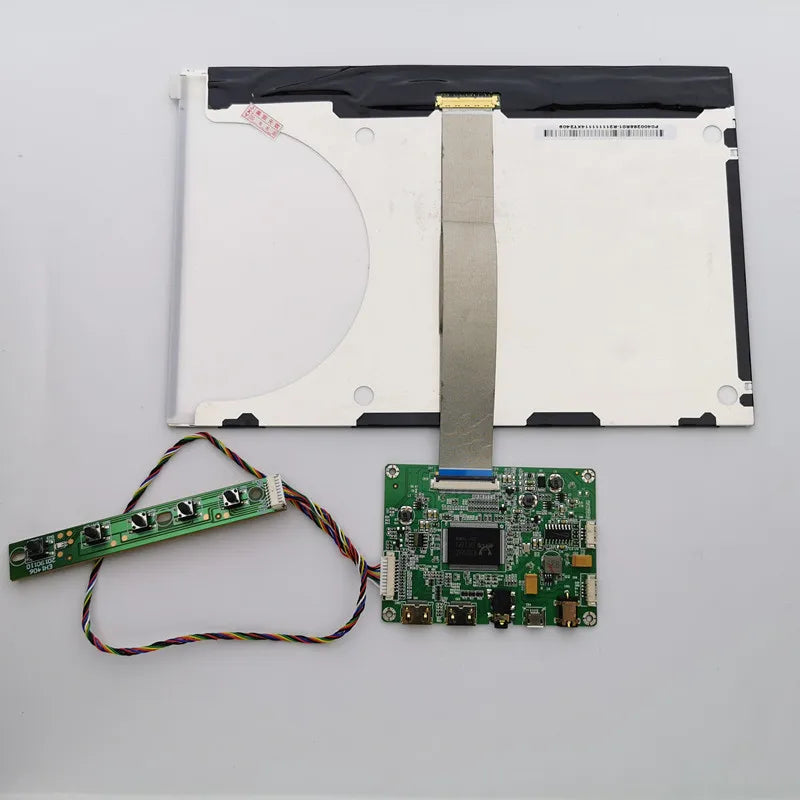

LCD Display module contenido del paquete

1 *10.1 inch LCD

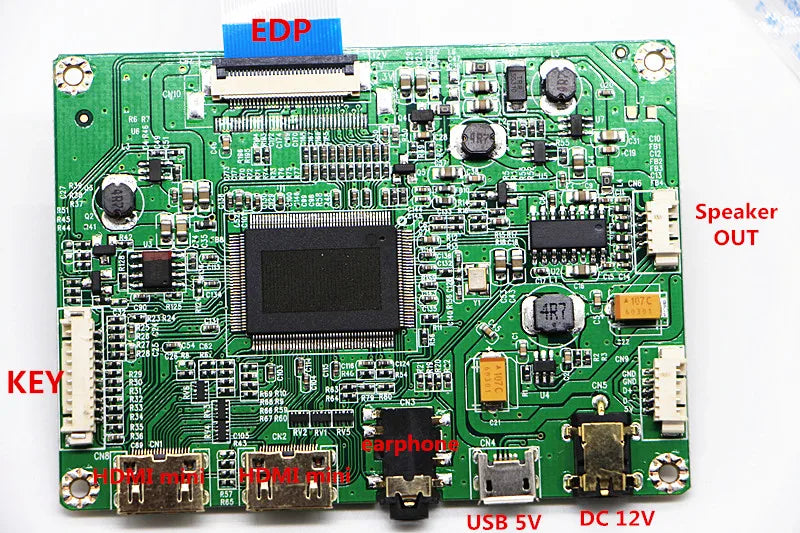

1 * Driver board
1 * EDP cable
1 * teclado OSD

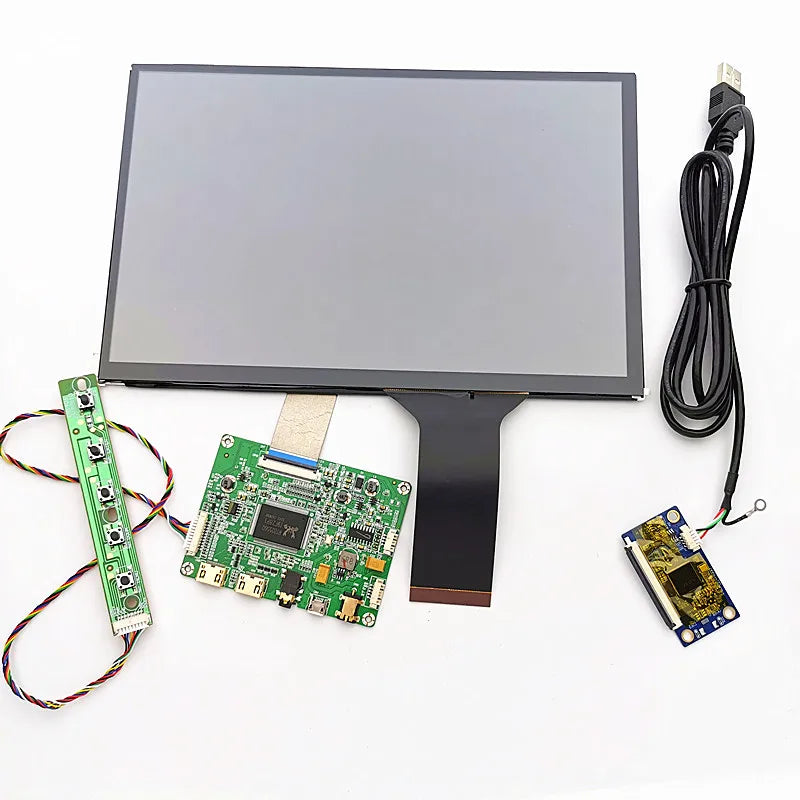

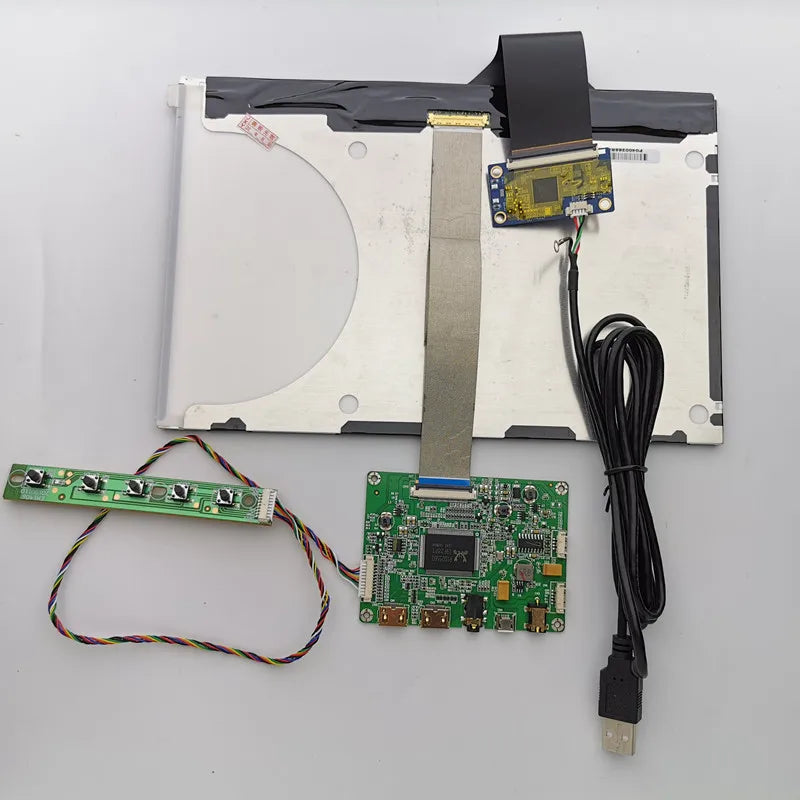

Touch display module contenido del paquete

1 * Capacitive Touch Panel

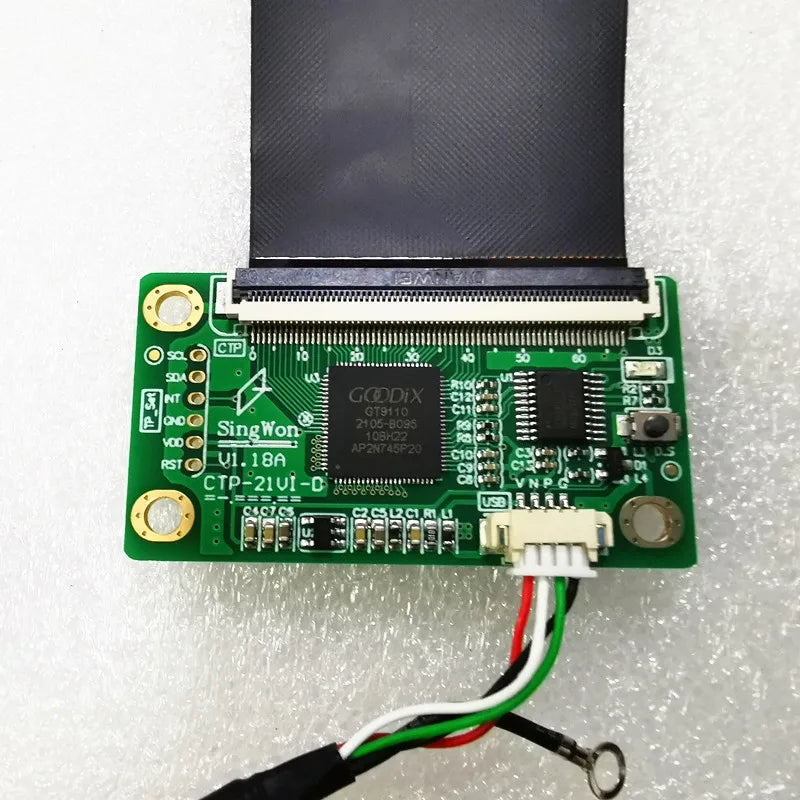

1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *10.1 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD
