10.1 inch 1280x800 16:10 LCD capacitive touch screen kit car drive display suite VGA+2AV+HD AV2 astern is preferred
Touch screen USB control, Support system WIN7 WIN8 Hd IPS LCD back the default priority suite
12 v wide electrical power supply
1: use 1280 x800 IPS LCD screen LCD Highlights the high score high definition.
2: high transparent, high sensitive capacitive touch screen multi-touch, USB universal.
3: drive the mainboard input signal source have HDMI 1.2 + VGA + AV1 + AV2 (AV2 for reversing video)

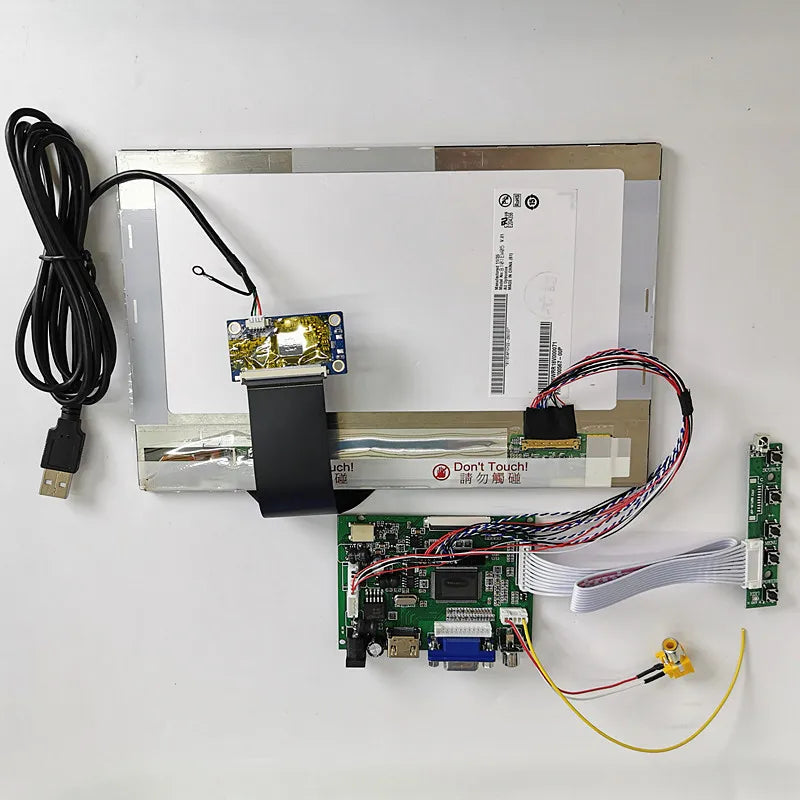

2: shipping list:

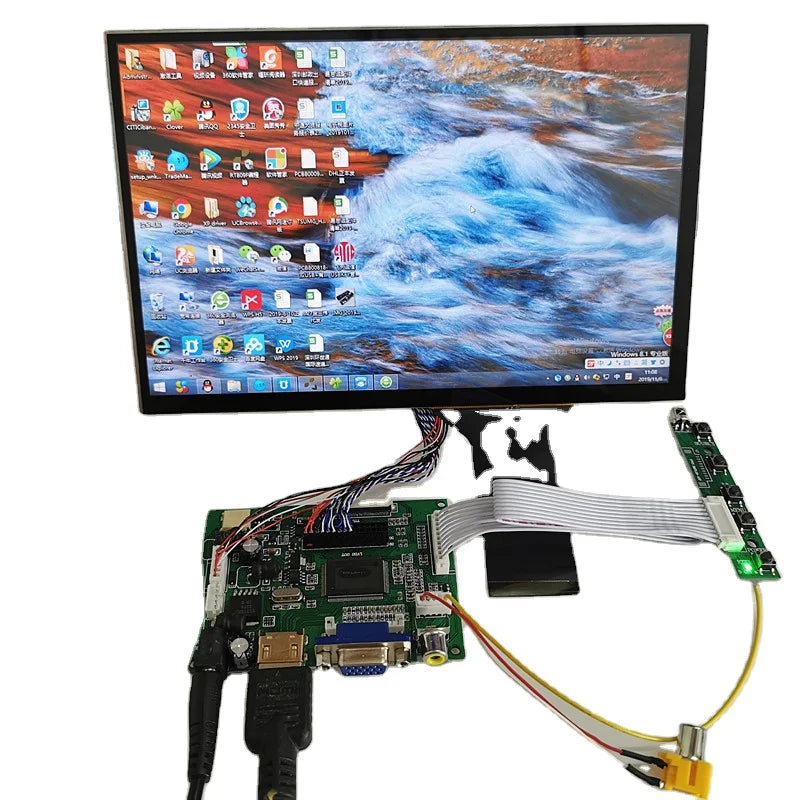

1:10. 1 inch LCD + 1 capacitive touch screen
2: the car driver board 1 piece

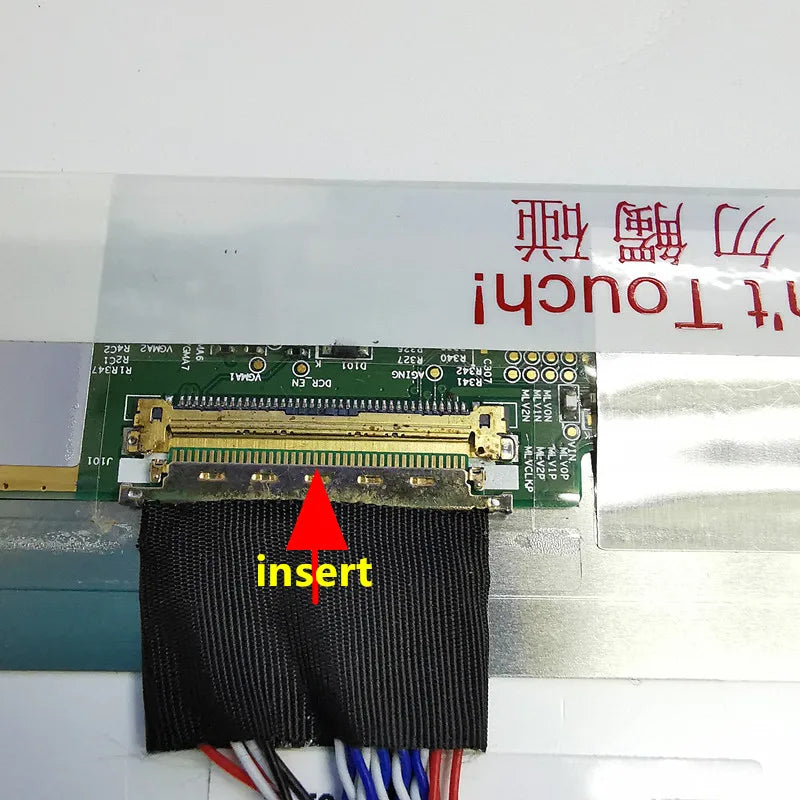

3: LVDS panel line 1, the USB line 1
4: AV2 reversing video connector 1; Priority control line 1 the backing out
5: the five key press 1 keypad, remote control one
parameter
LCD models: B101EW05
Resolution: 11280 x800
Display mode: IPS
Panel brightness: 350
Contrast: 1300:1
Visual Angle: the Angle of view
Signal interface: an LVDS (1 ch, 6-bit)
The appearance of size: 229.5mm X 149mm
Display area: 217mm x 136mm
