10.1 inch 1024*600 1280*800 HD LCD Module Display Monitor IPS Screen with USB Capacitive Touch Panel for Raspberry Pi Custom

10.1 inch 1024*600 1280*800 HD LCD Module Display Monitor IPS Screen with USB Capacitive Touch Panel for Raspberry Pi Custom

$117.10 USD
$117.10 USD $117.10 USD
Sale Sold out
Specification
RPi Display 10.1 inch Capacitive Touch Screen LCD for Raspberry Pi 2 3 Model B B+ & BeagleBone Black Multi Systems Video Inputs
DESCRIPTION

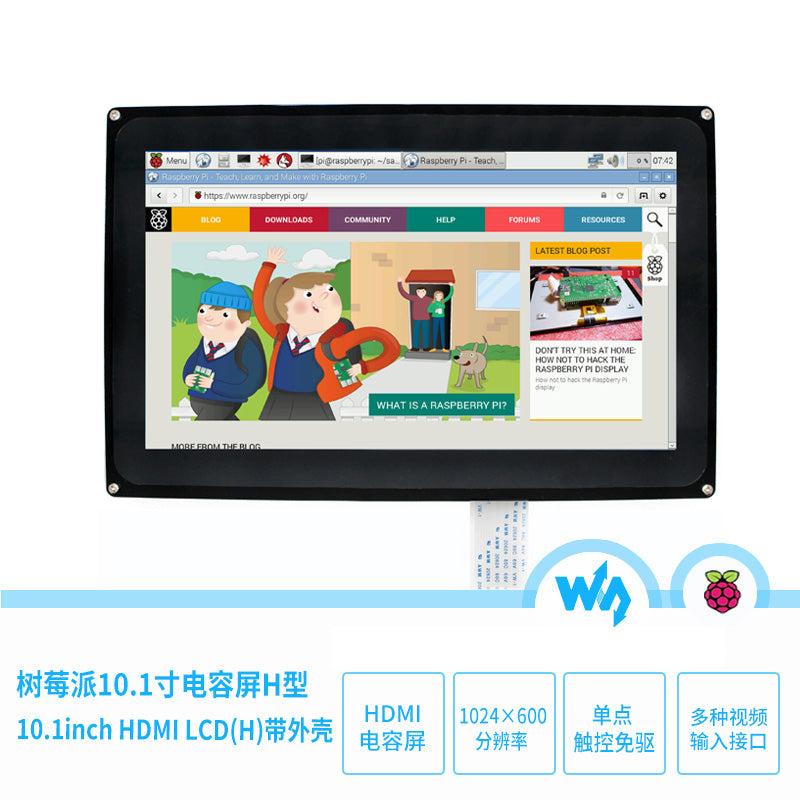

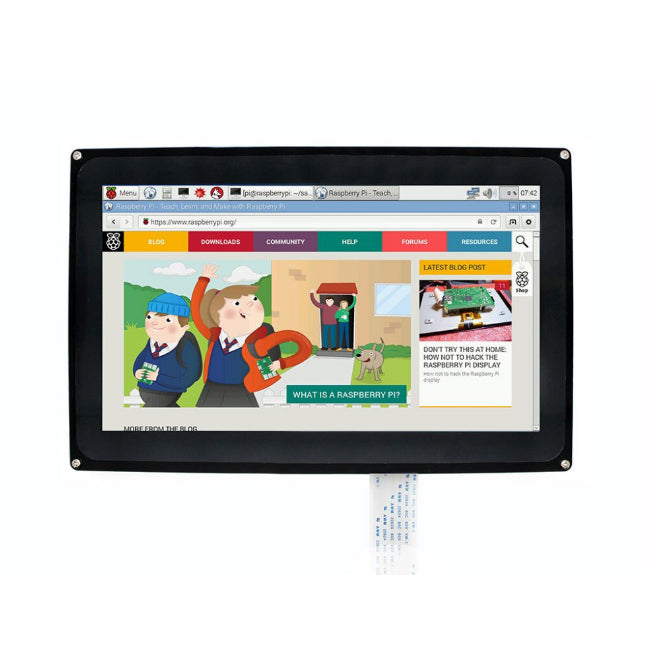

1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

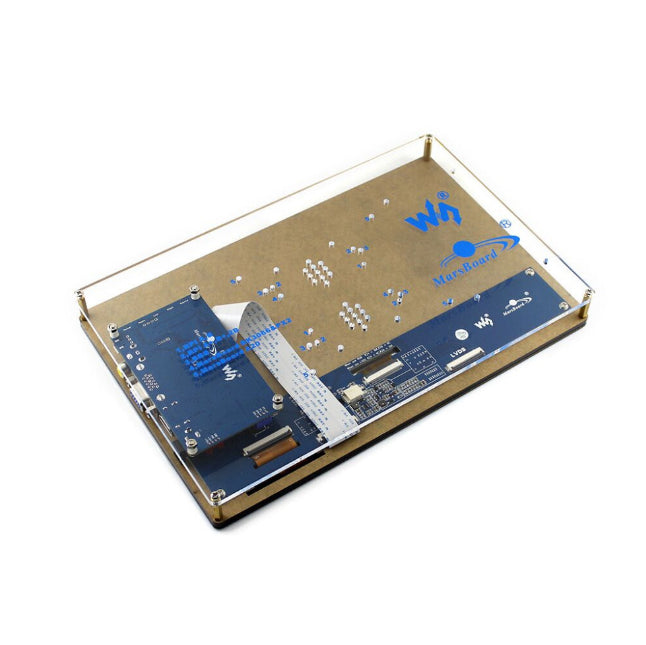

The LCD and Control Board

  • 10.1inch HDMI LCD consists of a 10.1inch Capacitive Touch LCD and an HDMI control board
  • 1024×600 high resolution
  • Capacitive touch control
  • When works with Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
  • Supports BB Black, comes with Angstrom image
  • Multi video input interfaces: HDMI, VGA, and AV(CVBS)
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • Firmware is upgradable to support more new features (continually updated)

More info : 10.1inch Capacitive Touch LCD (D)

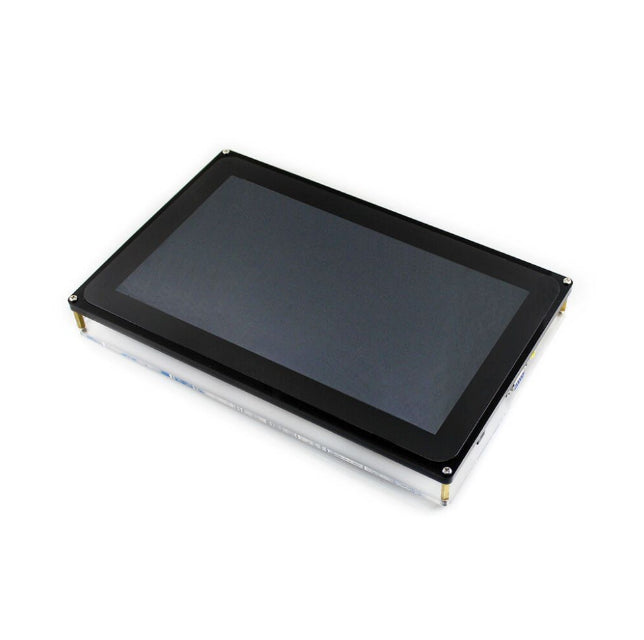

The Case

  • Material : high quality clear Acrylic
  • Comes with bottom holder, 45° tilt angle
  • Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, and BB Black


Weight: 0.946 kg

  1. 10.1inch Capacitive Touch LCD (D) x 1
  2. HDMI LCD control board x 1
  3. HDMI cable x 1
  4. USB type A plug to micro B plug cable x 1
  5. 40-pin FFC x 1
  6. Case for 10.1inch LCD × 1
  7. Screws pack x 1
  8. Bottom holder x 2
  9. Power adapter US standard 12V/1A × 1

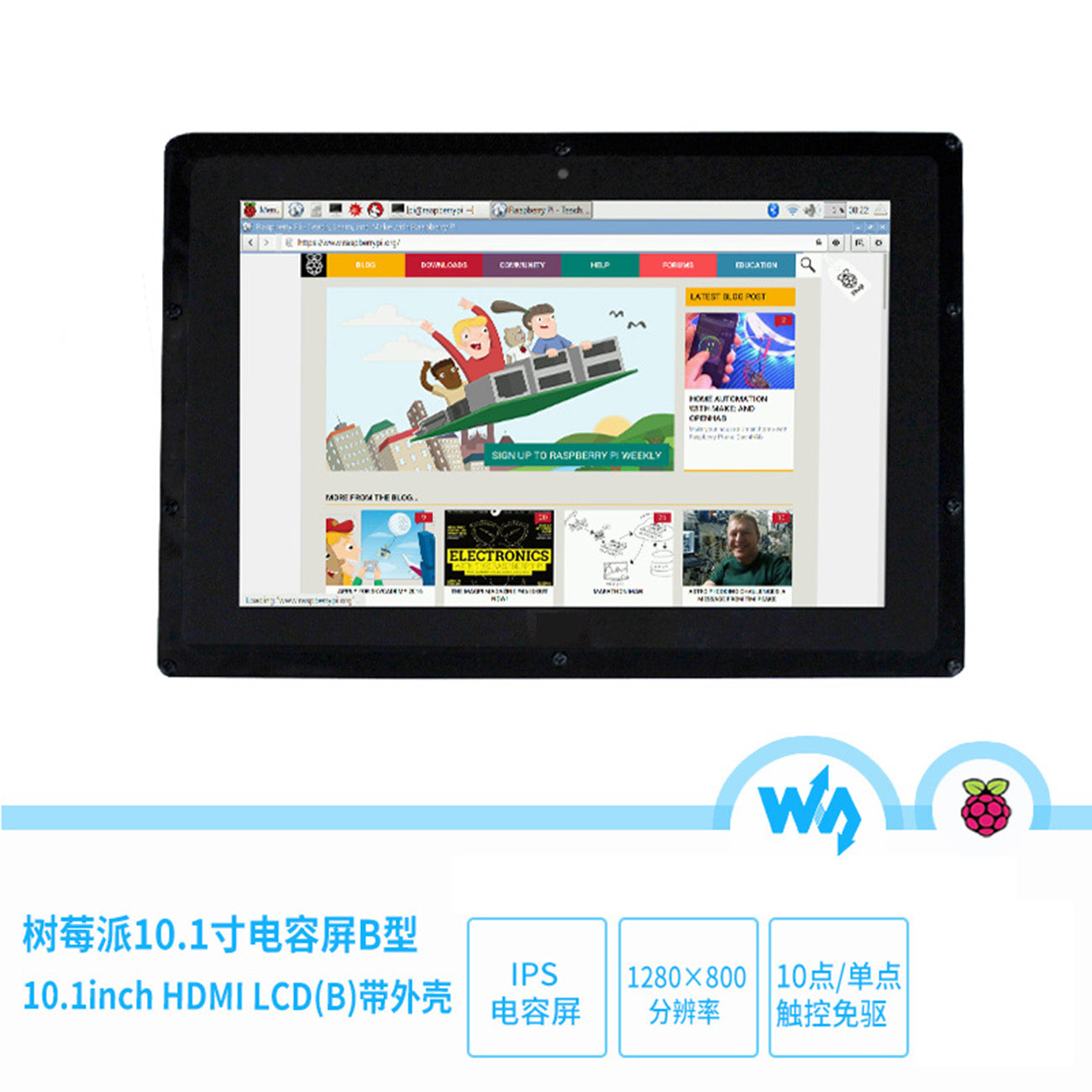

10.1inch HDMI LCD 1280*800:
DESCRIPTION
IPS, 1280x800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Comes with EU plug power adapter
The LCD and Control Board
IPS screen,1280x800 hardware resolution
Toughened glass capacitive touch panel, 6H hardness
Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
HDMI interface for displaying, USB interface for touch control
Supports 5-level backlight adjustment
Note: to use the LCD with following mini-PCs,
