1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface

Overview

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice.

Features

  • •Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

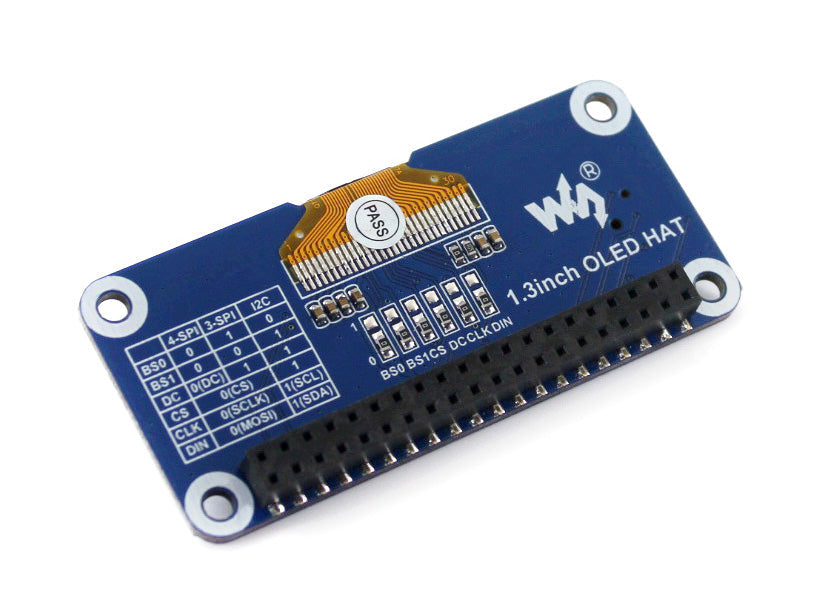

  • • Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
  • • 1x joystick (5-position), 3x pushbuttons, handy and useful
  • • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano)

Specifications

  • • Driver: SH1106
  • • Interface: 4-wire SPI, 3-wire SPI, I2C
  • • Display color: blue
  • • Resolution: 128x64
  • • Operating voltage: 3.3V

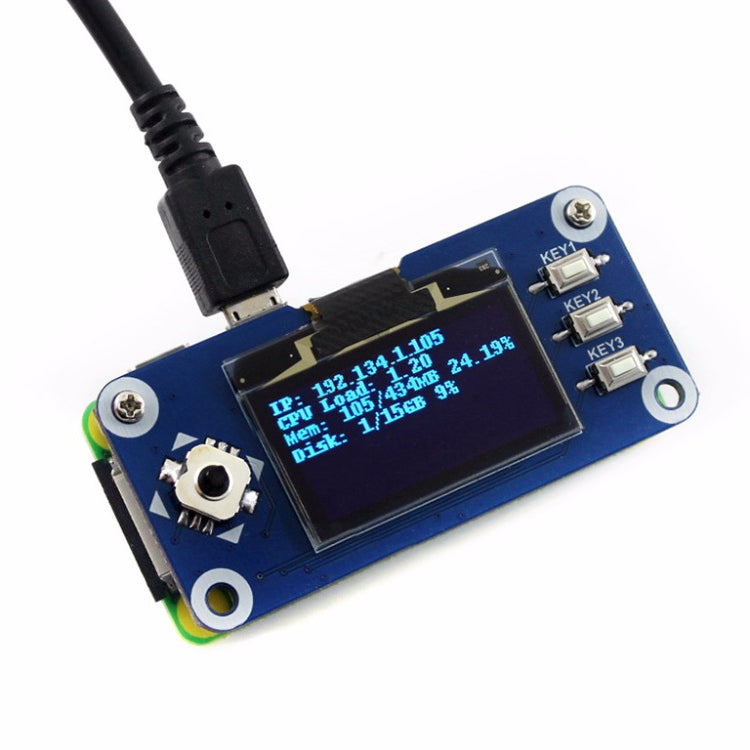

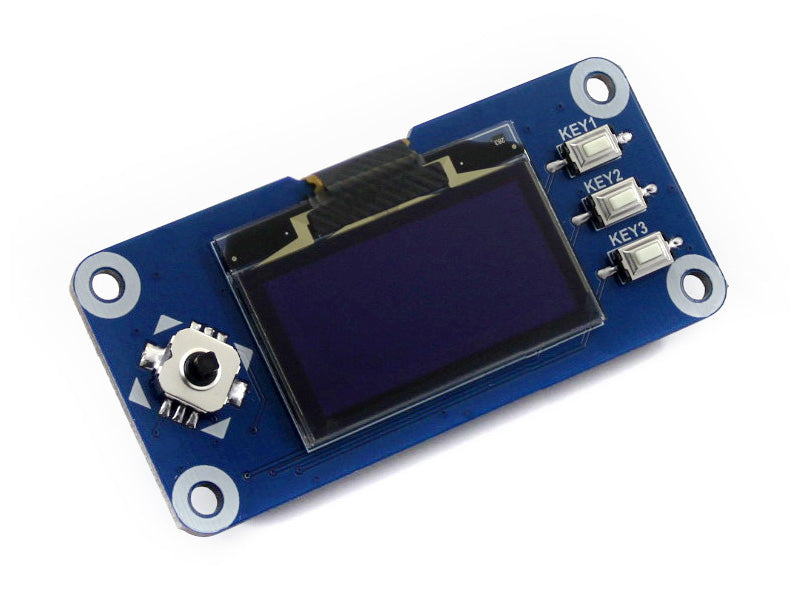

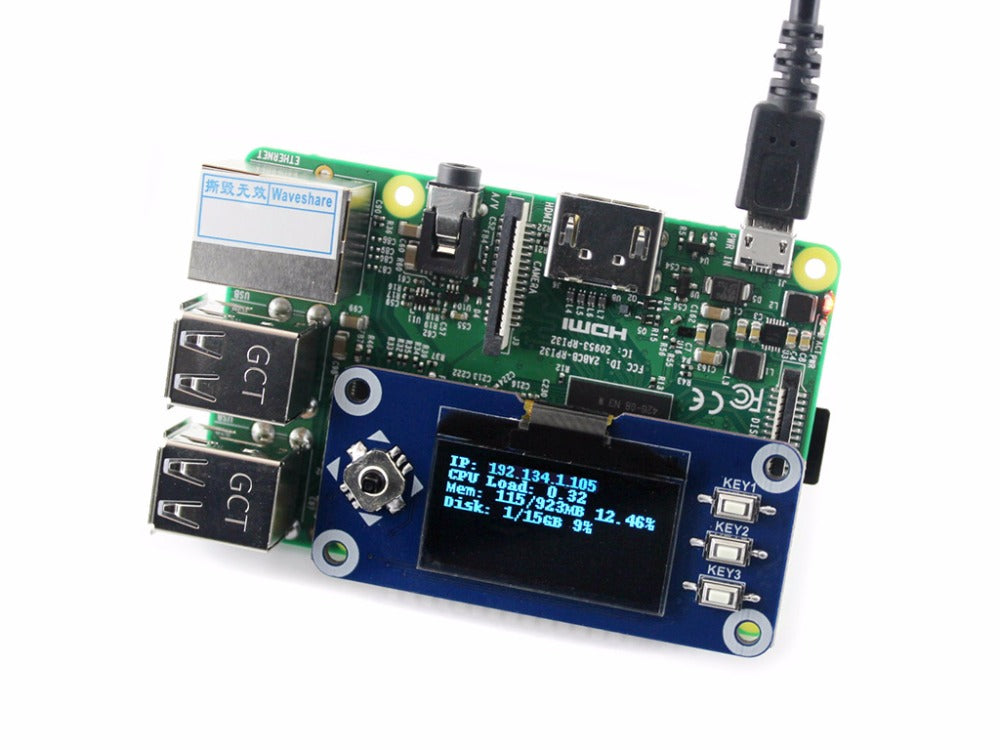

Photos

Interface

SYMBOL RASPBERRY PI PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P24 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P25 Reset, low active

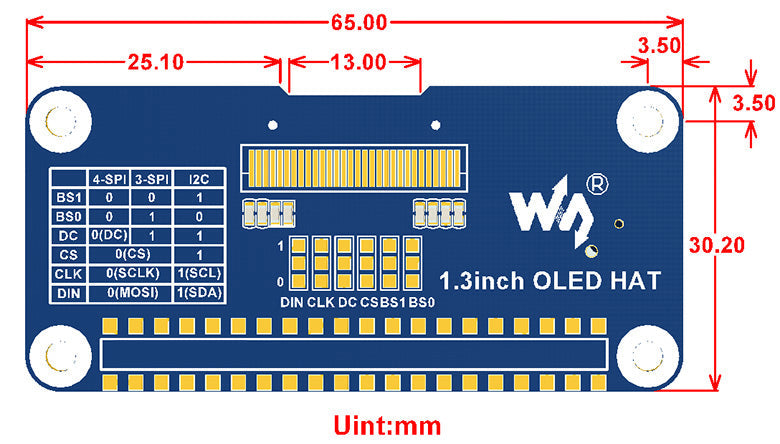

Dimensions

Development Resources

PACKAGE CONTENT

Weight: 0.012 kg

  1. 1. 1.3inch OLED HAT x1
  2. 2. RPi screws pack (2pcs) x1
