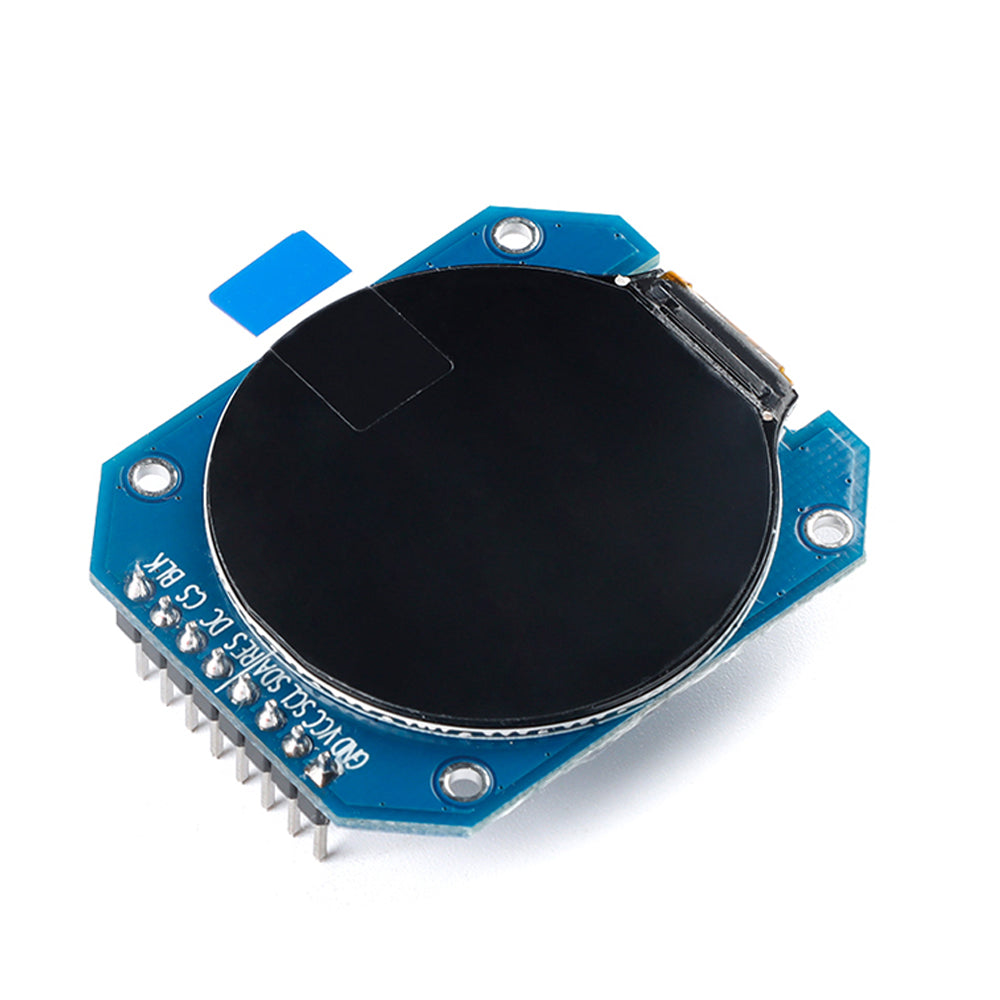

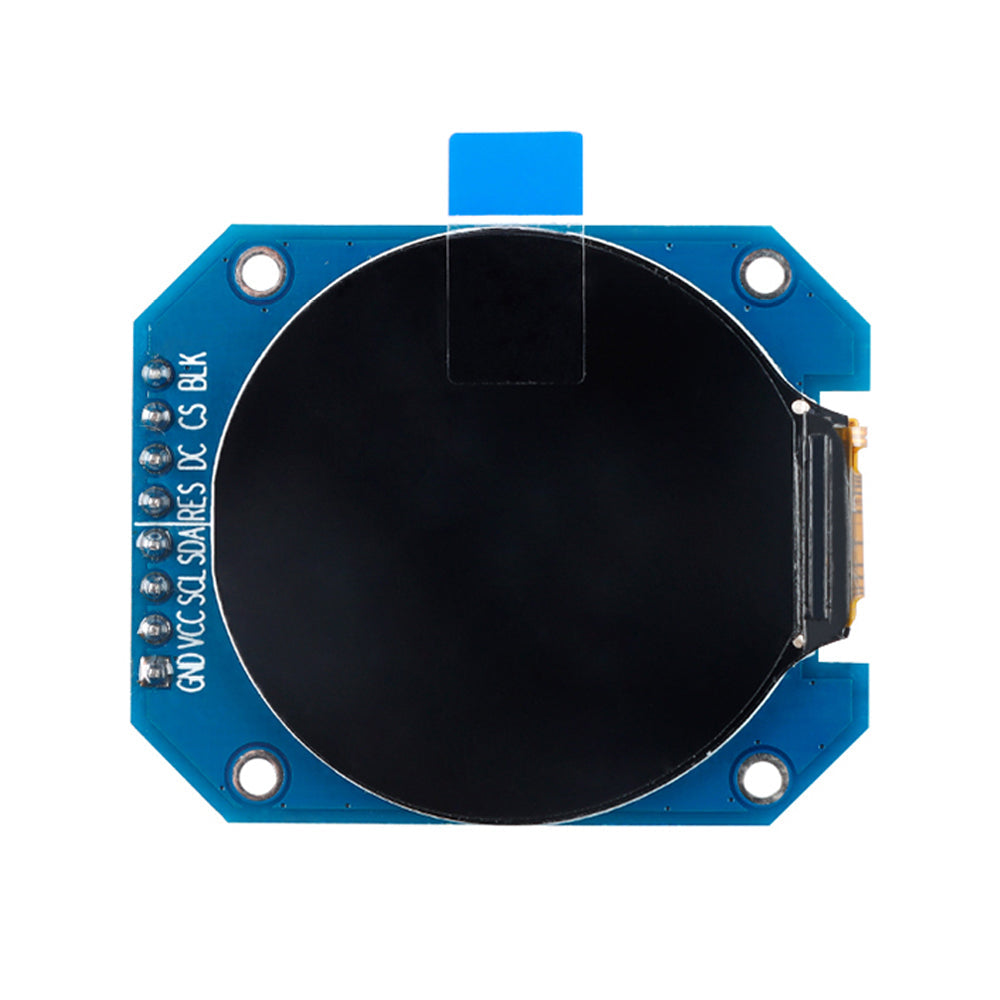

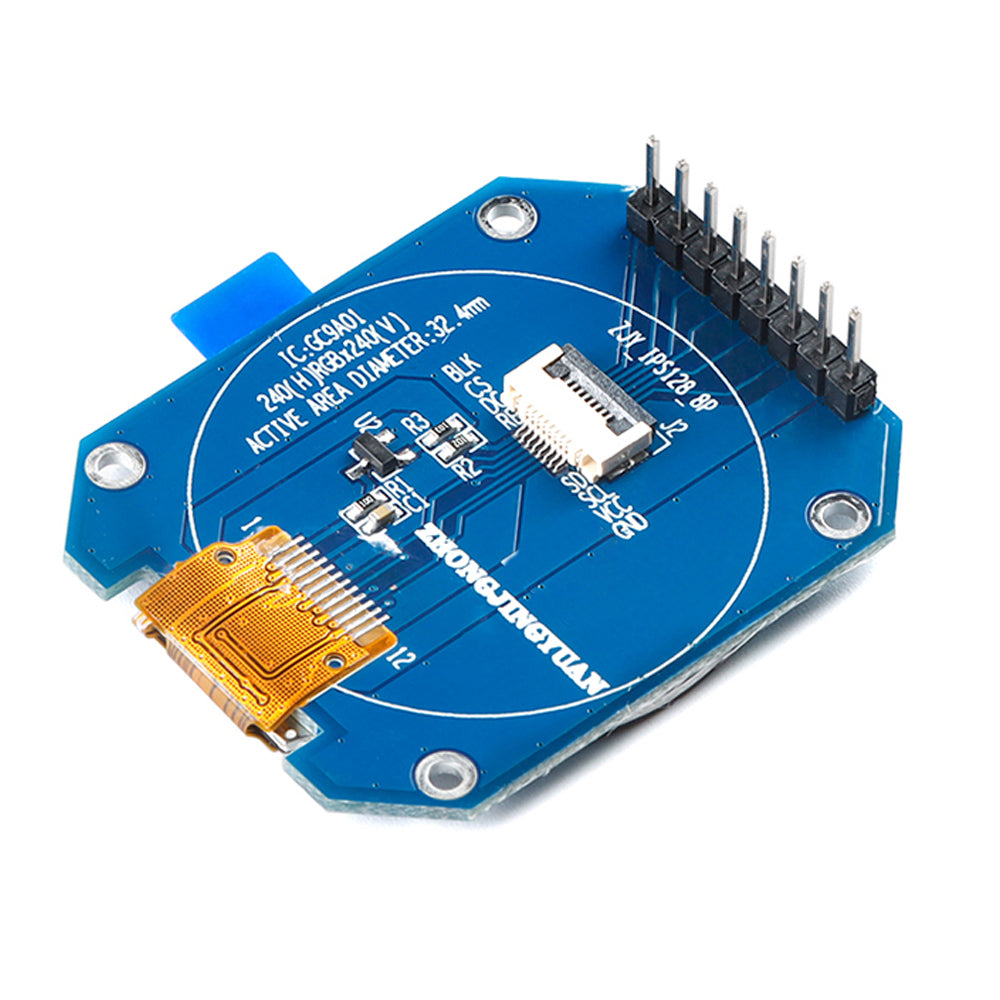

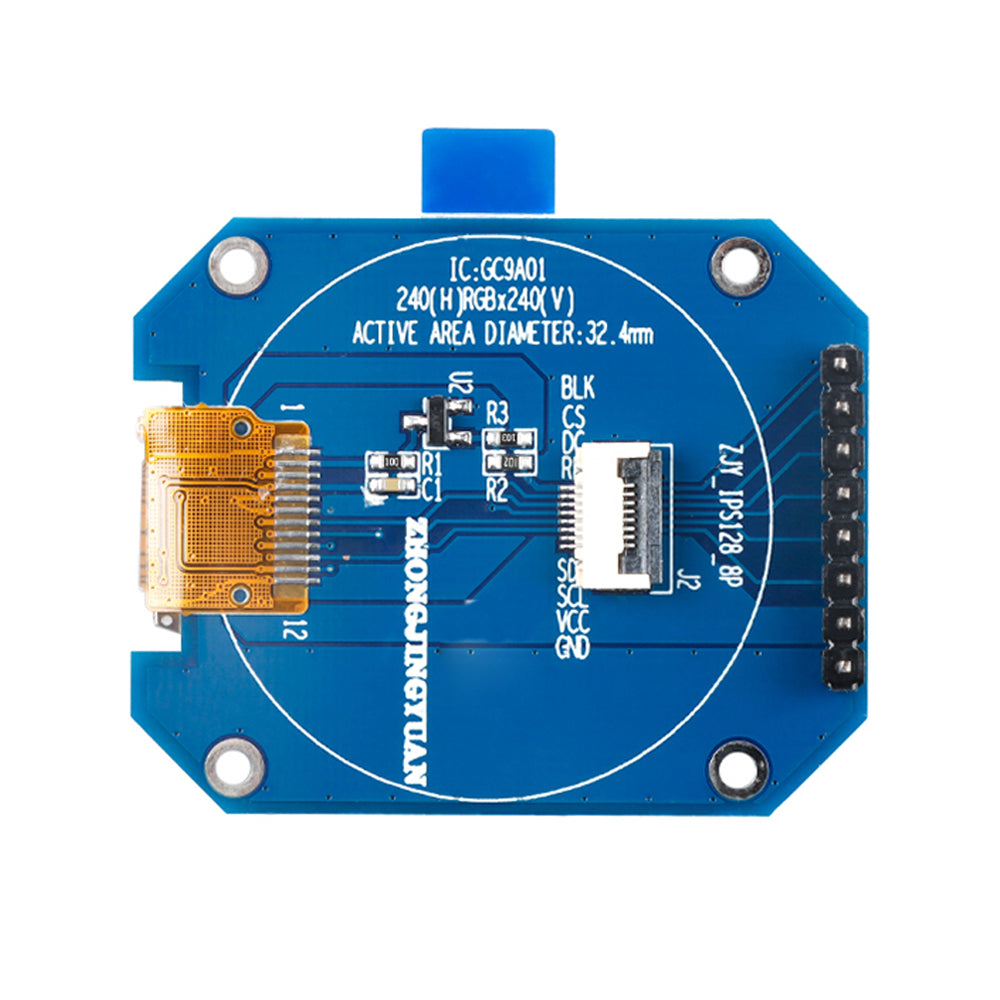

1.28 inch round TFT LCD screen display 128*128 RGB screen SPI interface GC9A01 driver 32.4mm 8Pin Custom
1.28 inch round TFT LCD screen display 128*128 RGB screen SPI interface GC9A01 driver 32.4mm 8Pin Custom
Regular price
$12.98 USD
Regular price
$12.98 USD
Sale price
$12.98 USD
Unit price
/
per
Size: 1.28 inches
Material: HD IPS LCD
Resolution: 240(H)RGB x 240(V)
Driver chip: GC9A01
Communication interface: 4 Line SPI
Display color: full color

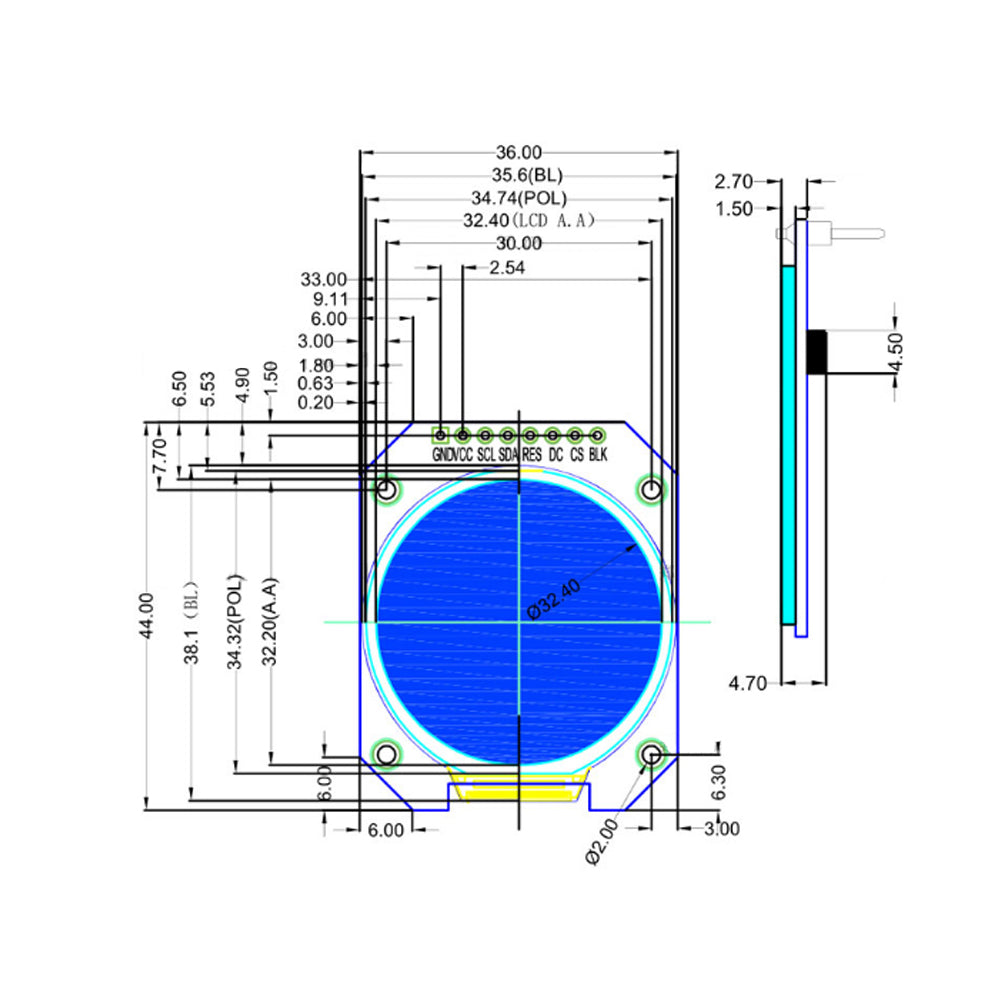

Display area: 32.4mm
Panel size: 44(H)x 36(V)x2.8(D)
Pixel pitch: 0.135(H) x 0.135(V)
Number of pins: 8Pin (2.54mm pitch single row pin header, default not soldered)
Viewing direction: All View
Working voltage: 3.3V
Working current: 20ma
Backlight type: 2 white LED Parallel
Working temperature: -20~70 degrees
