Lonten Technology

0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160x80 Pixels SPI Interface Custom PCB pcb pcba service Custom

0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160x80 Pixels SPI Interface Custom PCB pcb pcba service Custom

Regular price $11.40 USD
Regular price $51.40 USD Sale price $11.40 USD
Sale Sold out

Raspberry Pi Pico is NOT included.
The package only includes Pico-LCD-0.96

DESCRIPTION



0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160x80 Pixels, SPI Interface

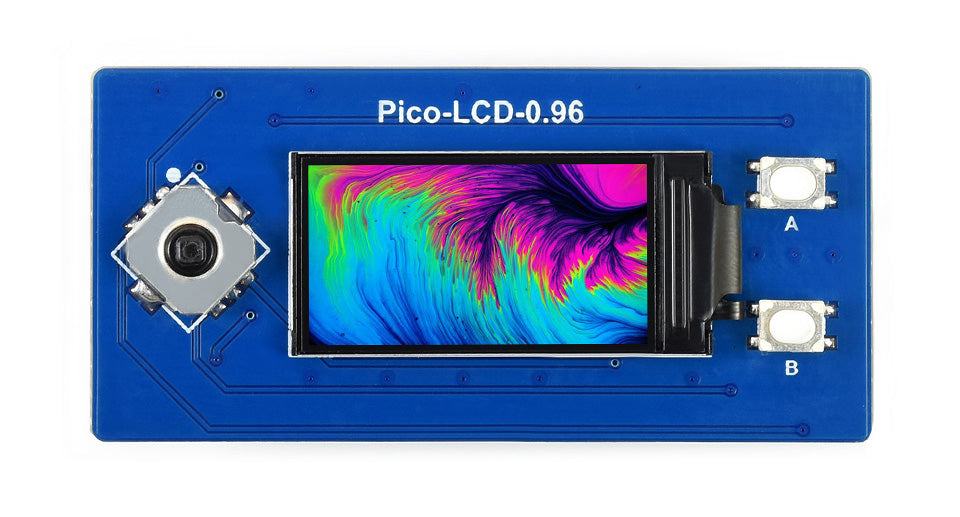

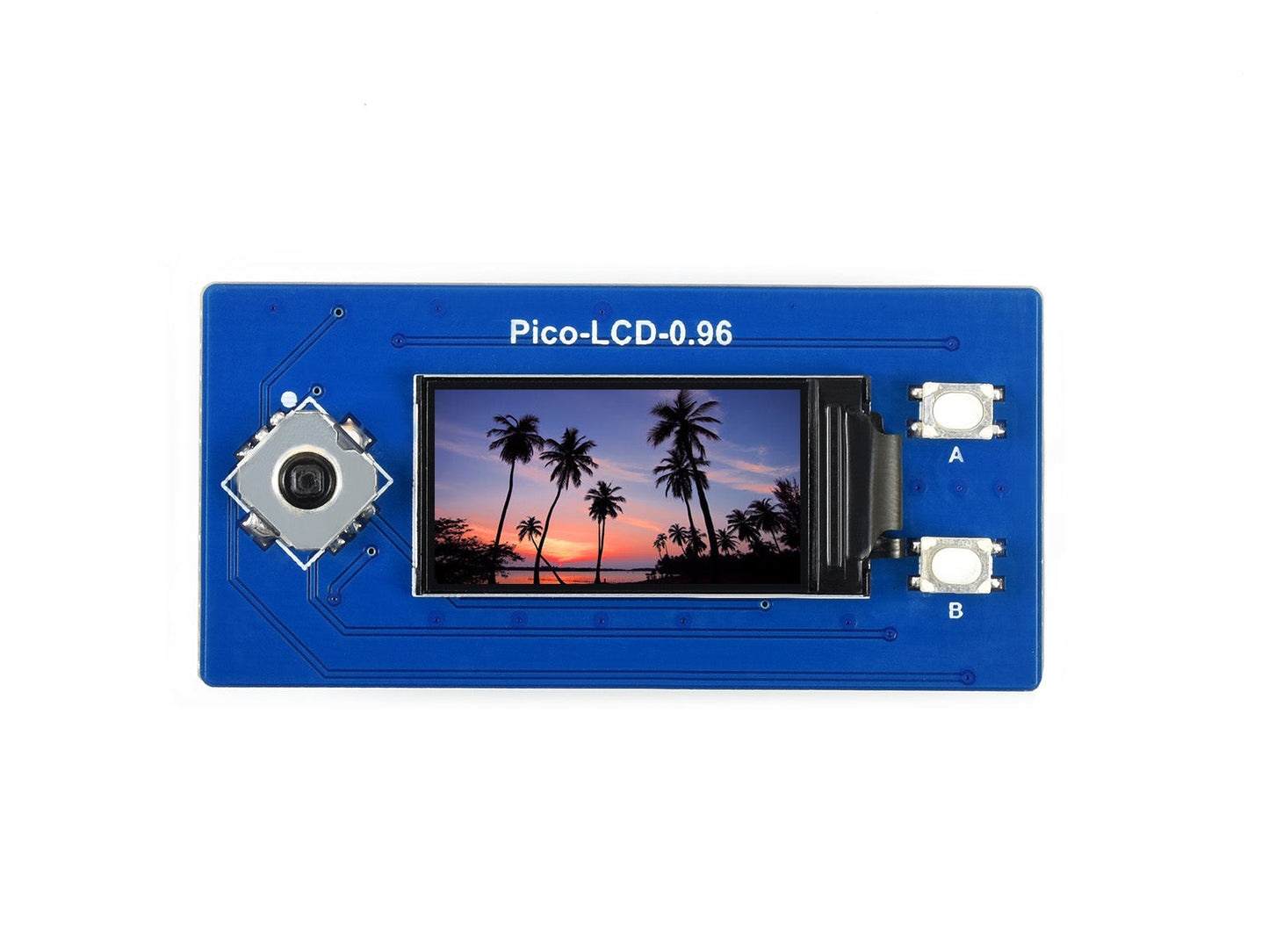

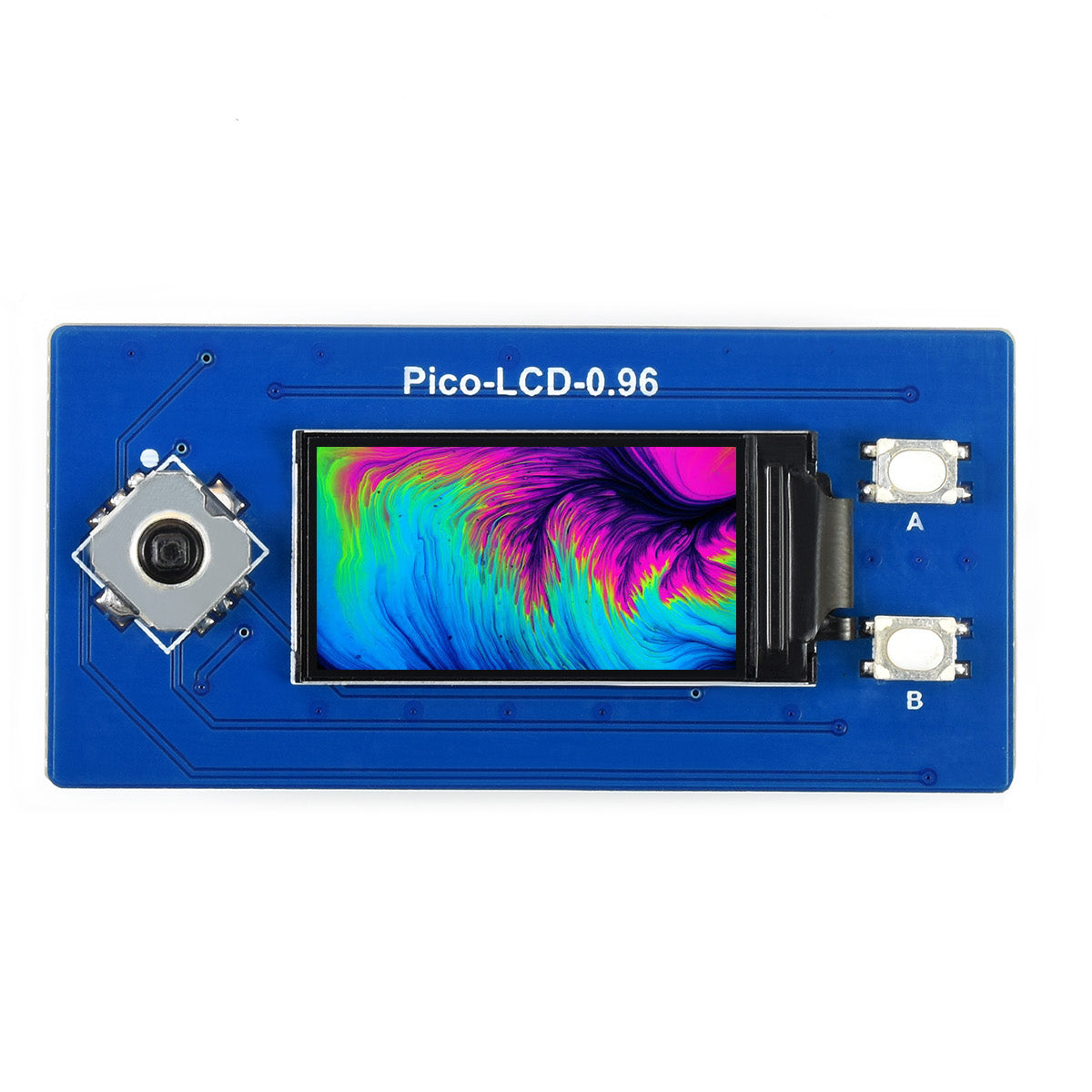

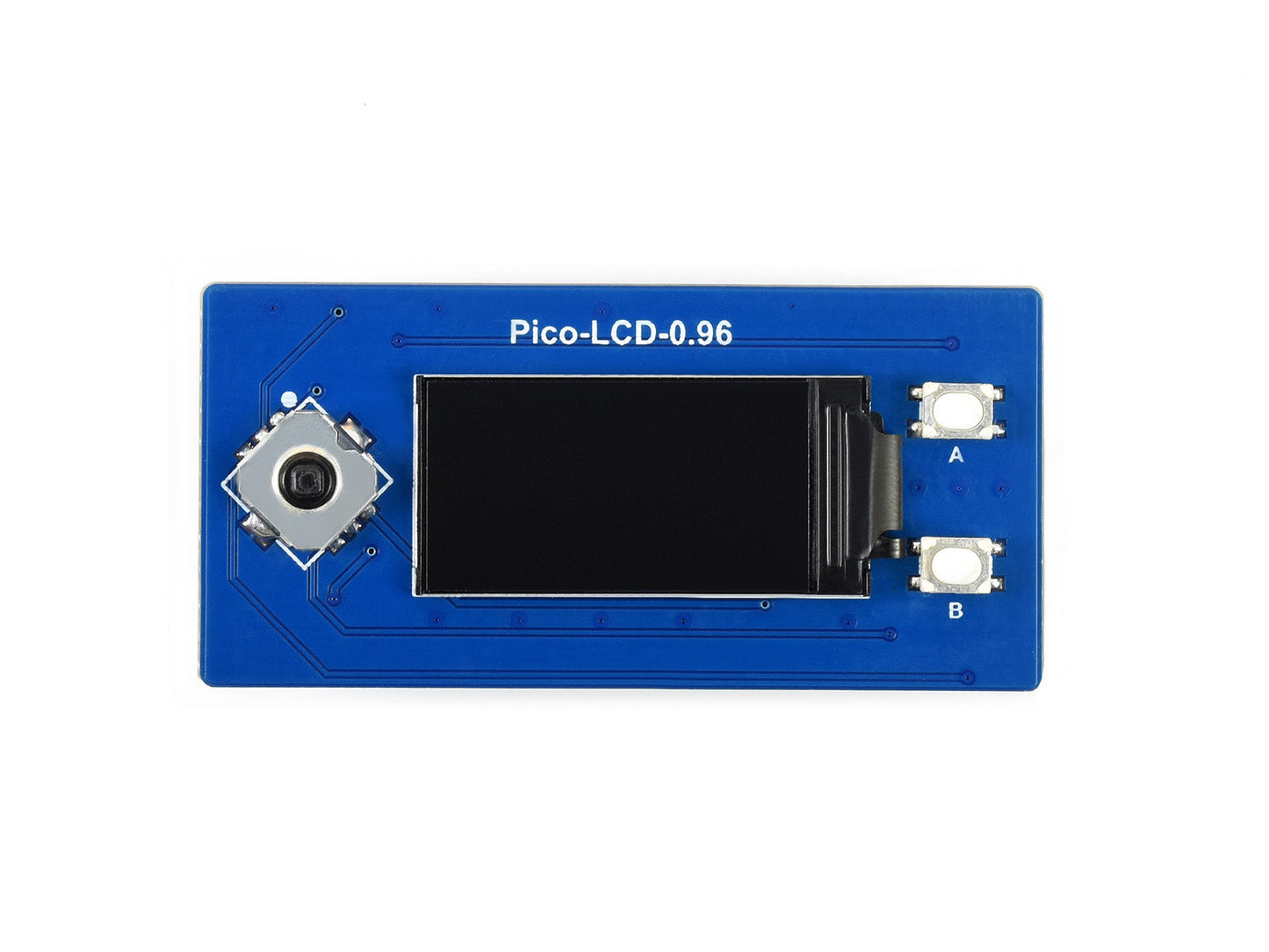

0.96" LCD Display Module For Pico

Embedded ST7735S Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size0.96"

  • Resolution160x80

  • Display Color65K RGB

  •
  • InterfaceSPI

  • Display PanelIPS

  • DriverST7735S

Features At A Glance
  • 16080 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect

  • SPI interface, requires minimal IO pins

  • 1x joystick and 2x user buttons for easy interacting

  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE

2.6 ~ 5.5V

RESOLUTION

160x80 pixels

COMMUNICATION INTERFACE

4-wire SPI

DISPLAY SIZE

21.70 x 10.80mm

DISPLAY PANEL

IPS

PIXEL SIZE

0.1356 x 0.135mm

DRIVER

ST7735S

DIMENSIONS

52.00 x 25.00mm

Raspberry Pi Pico Header Compatibility

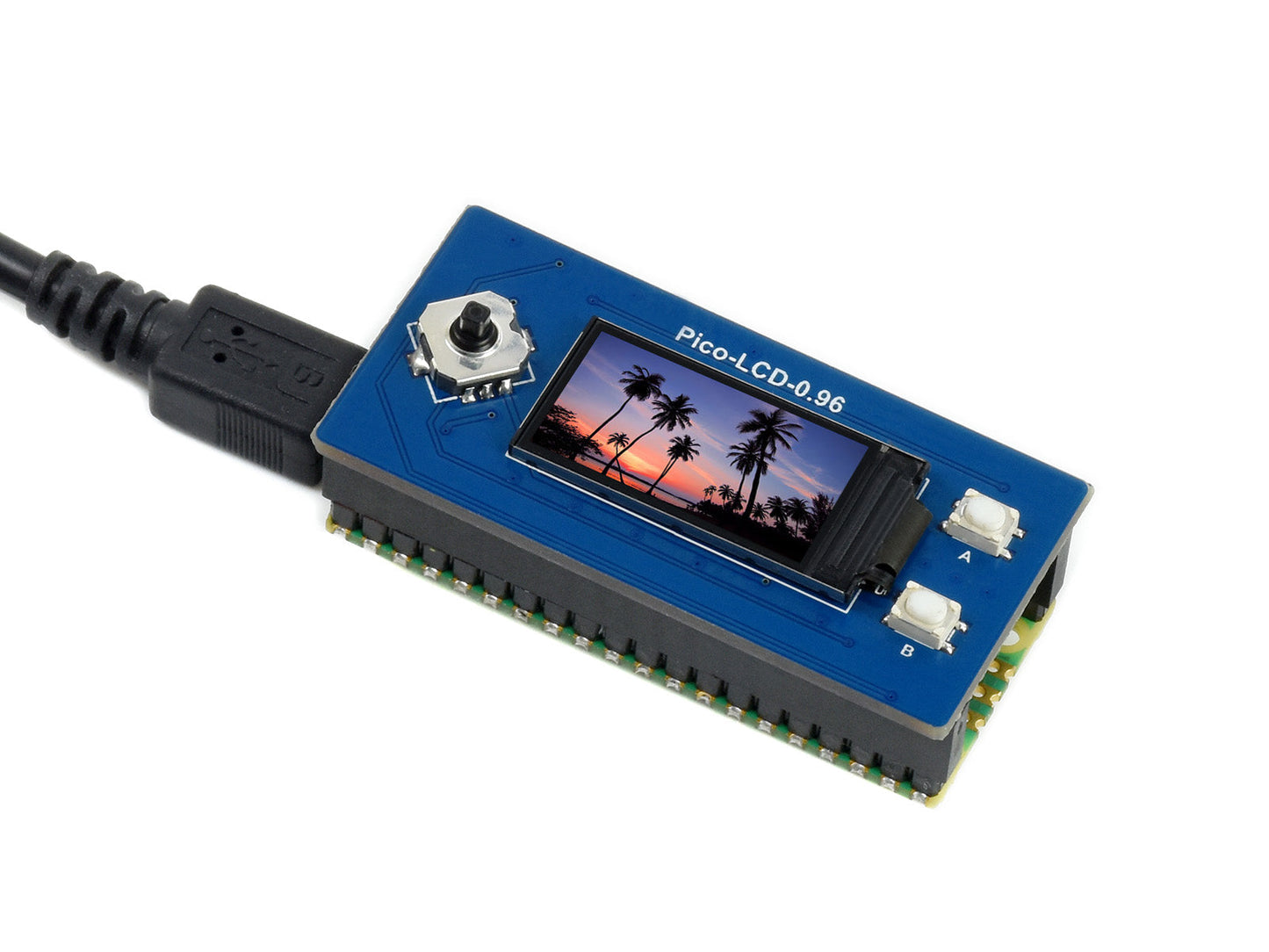

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 2x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.

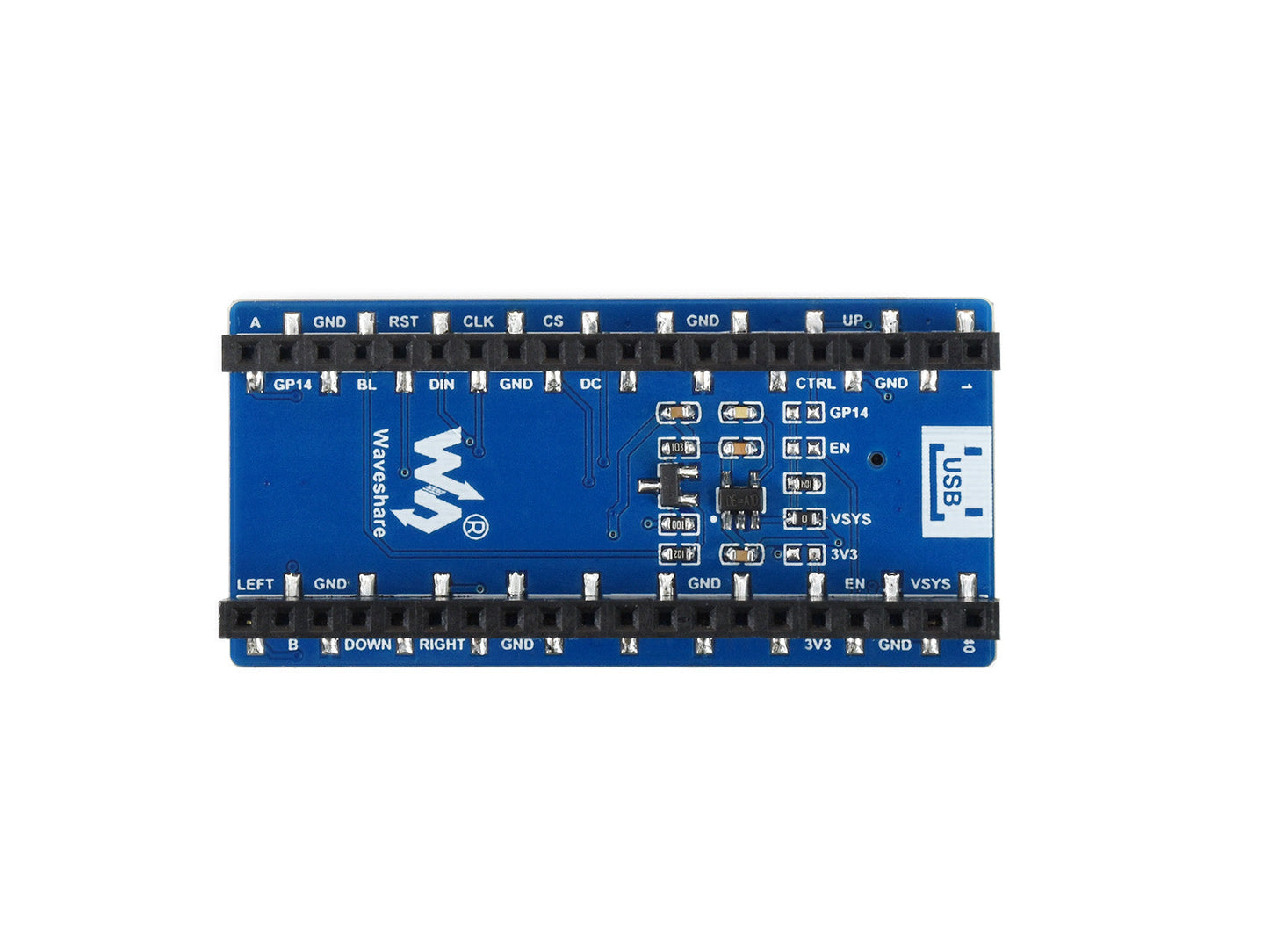

Pinout Definition
Outline Dimensions
Selection Guide

PART NUMBER

TYPE

DISPLAY COLOR

PIXELS

DISPLAY SIZE (MM)

BUS

DRIVER

DIMENSIONS (MM)

TOUCH

Pico-LCD-0.96

IPS

65K RGB

160x80

21.70x10.80

SPI

ST7735S

52.00x25.00



Pico-LCD-1.14

IPS

65K RGB

240x135

24.91x14.86

SPI

ST7789

52.00x25.00



Pico-LCD-1.3

IPS

65K RGB

240x240

23.40x23.40

SPI

ST7789

52.00x26.50



Pico-LCD-1.8

TFT

65K RGB

160x128

35.04x28.03

SPI

ST7735S

52.00x34.50




PACKAGE CONTENT




Weight:0.01 kg

  1. Pico-LCD-0.96 x1
