Custom PCB pcba assembly manufacturer A206 Carrier Board for Jetson Nano/Xavier NX with compact function design and same
Custom PCB pcba assembly manufacturer A206 Carrier Board for Jetson Nano/Xavier NX with compact function design and same
Couldn't load pickup availability

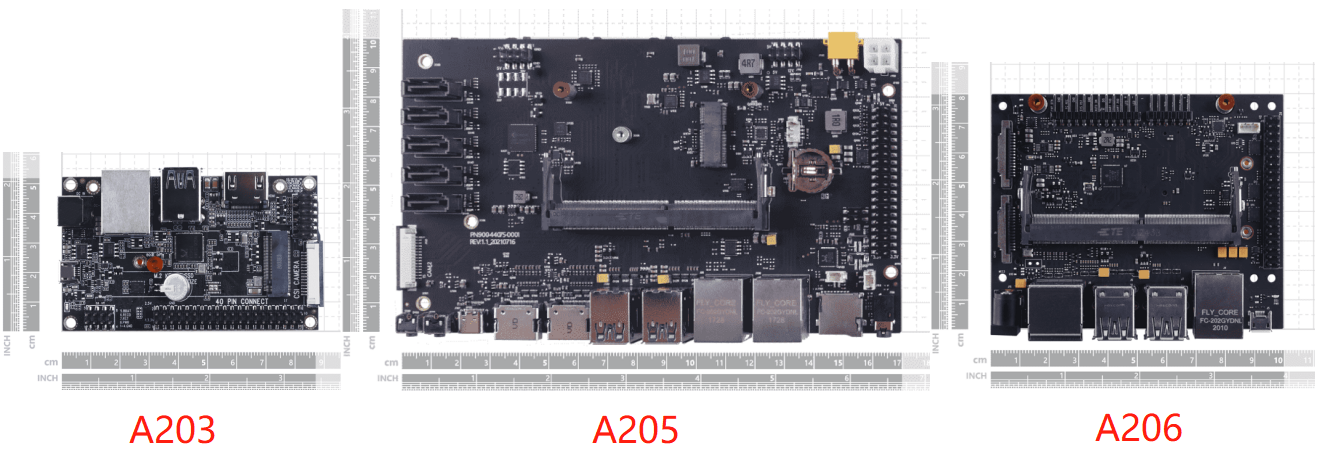

The A206 carrier board has nearly the same design and function with NVIDIA® Jetson Xavier™ NX carrier board but could work well with Jetson Nano module, too. It provides several connectors with industry standard pinouts to support additional functionality beyond what is integrated on the main platform board.
Features
-
USB 2.0: Micro B Connector
-
USB 3.1: Type A Stacked Connectors
-
RTC back-up coin-cell retainer
-
M.2 Key E Socket & M.2 Key M Socket
-
HDM1 / DP: HDM1 Type A and DisplayPort Stacked Connector
-
Gigabit Ethernet: RJ45 Connector
Description
A206 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDM1 2.0, Gigabit Ethernet, USB3.0, M.2 key E wifi / BT, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, I2S fans and other rich peripheral interfaces. It has the same functional design and size with the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Basically, it can works with an NVIDIA Jetson Nano or an NVIDIA Xavier NX module to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX Module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot control, Drone, etc. Overall, A206 is ideal for software development within the Linux environment. Standard connectors are used to access Jetson Xavier NX features and interfaces, enabling a highly flexible and extensible development platform.
Application
-
Industrial Automation
-
Robotics
-
Healthcare
-
Computer Vision
-
Education
Specifications
| Connector | Description |
| HDM1 Port | 2*HDM1 Right Angle Vertical Connector |
| USB 3.0 Type A | 4*USB 3.0 Type A Connector |
| NVIDIA Gigabit Ethernet | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) |
| DC Power | 1*DC Input Power TE Connector |
| FAN Connect | 1*Picoblade Header |
| M.2 KEY E | 1*M.2 Key E Connectivity Slot (75-pin) |
| CSI Camera Connect | 2*CSI Camera (15 pos, 1mm pitch) |
| Multifunctional port | 2.0 Pitch 40 PIN |
| 3V Lithium Battery | 1*3V backup battery |
| M.2 KEY M | 1*M.2 Key M Slot (75-pin) |
| NVIDIA Jetson Nano/NX connector | 1*Jetson Xavier NX Conn. (SODIMM, 260-pin) |
| CAN | 1*CAN Bus Header (1x4, 2.54mm pitch, RA) |
| Button Header | 1*Button Header (1x12, 2.54mm pitch, RA) |
| USB Micro Type B | 1*USB Micro B, RA Female |
| RTC | 1*RTC Back-up Coin Cell Socket (CR1225) |

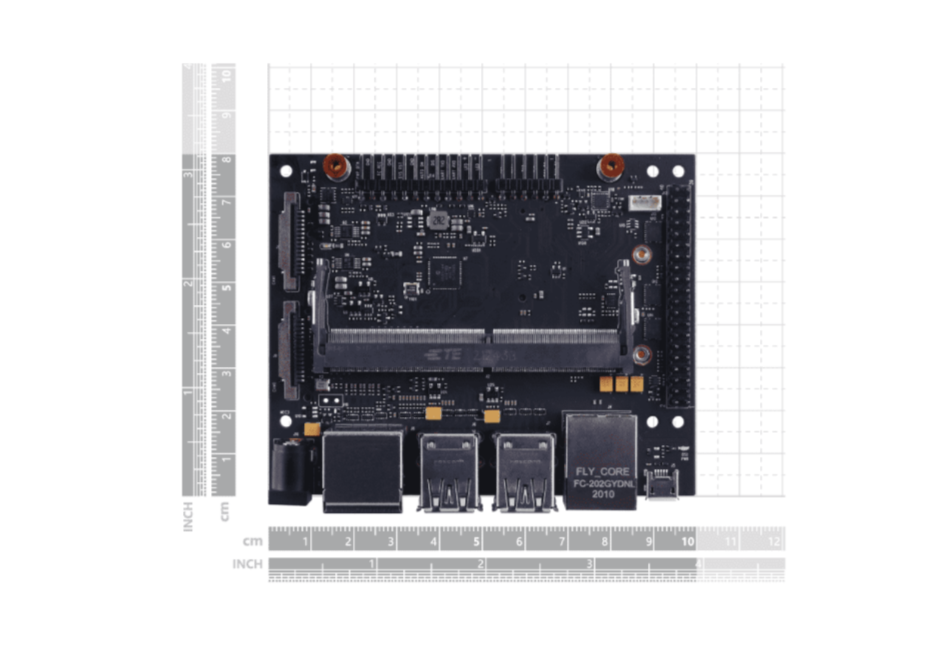

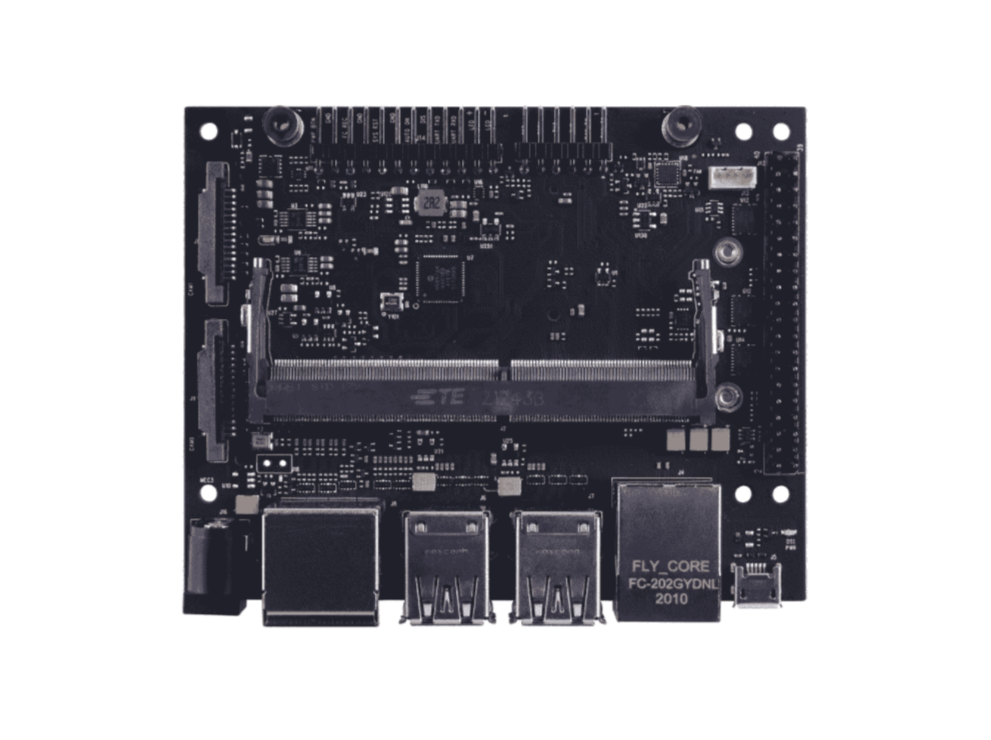

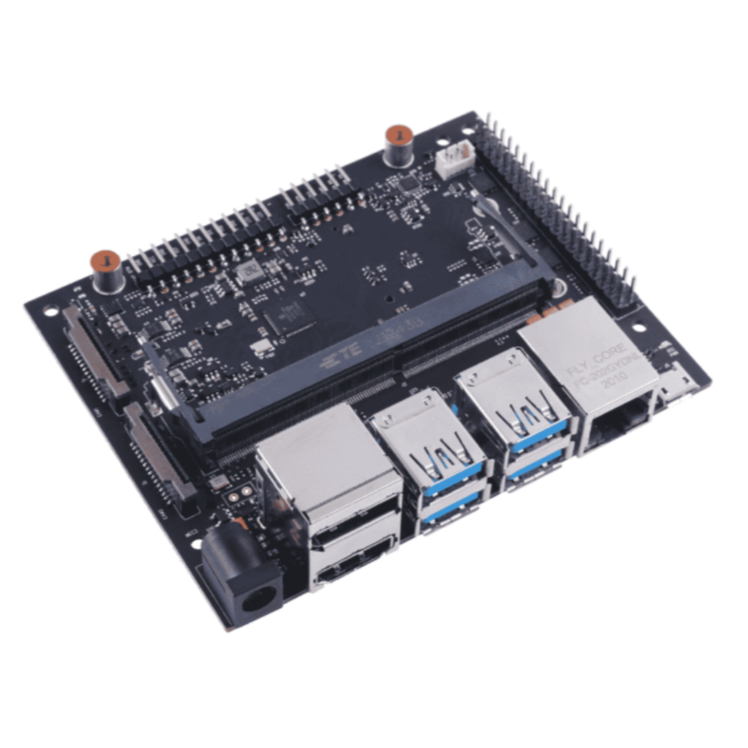

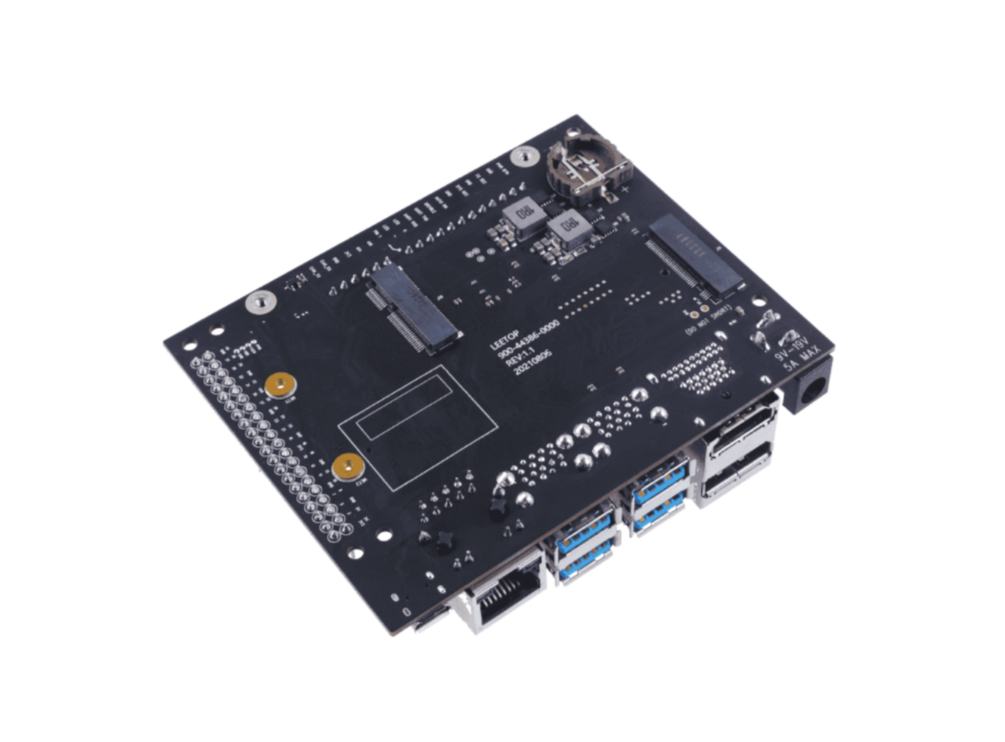

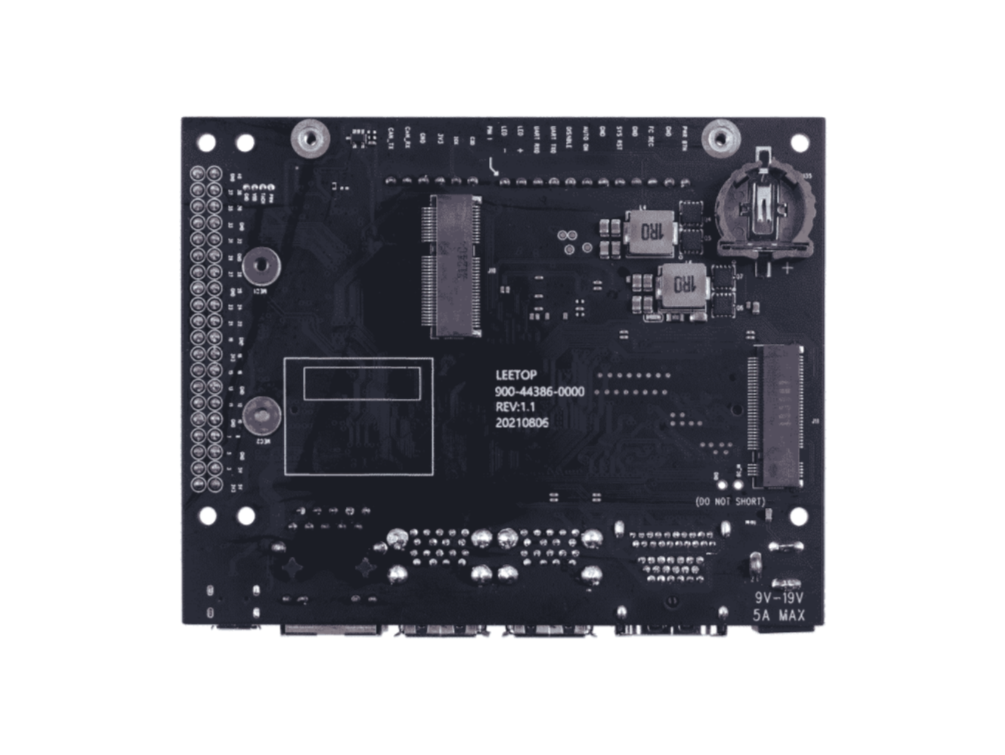

Hardware Overview
Part List
1 x A206 Carrier Board
1 x Power Adapter 15V/3A
